23z467smfnl Lan Isolation Transformer For Smd Flexible Thru Hole Pcb - China
price: check with company for price

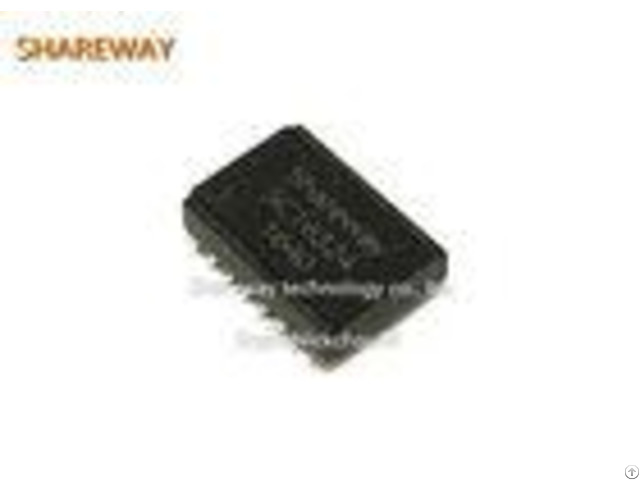

23Z467SMFNL Ethernet Magnetic Transformers For Thru-Hole Or SMD Flexible PCB PRODUCT DETAILS: # ROHS COMPLIANT.
# HEADER : PHENOLIC WITH FLAMMABILITY RATING UL 94V-O OR BETTER.
# STORAGE TEMPERATURE : -20 TO +125 # COMPLIANCE TO J-STD A.
J-STD-002: SOLDERABILITY AT 245 REFLOW PROFILE B.
J-STD-020: LEVEL 1, NO MOISTURE SENSITIVE C.
J-STD-075: R7, 245 MAXIMUM THROUGH REFLOW SOLDER ELECTRICAL CHARACTERISTICS AT +25 UNLESS OTHER SPECIFIED - - - - PARAMETER | SPECIFICATIONS | OPERATING TEMPERATURE | 0 - 70 | POLARITY | PER SCHEMATIC | TURNS RATIO ( F = 10 KHZ ) | ( 1 -3 ) : ( 16 -14 )= 1CT : 1 CT 2% ( 6 -8 ) : ( 11 -9)= 1CT : 2CT 2% ( 16 -15 ) : ( 15 -14 )= 1: 12% WITH PINS (1-3) SHORTED ( 11 -10 ) : ( 10 -9)= 1CT : 1 CT 2%WITH PINS (1-3) SHORTED | COUPLING CAPACITANCE | ( 1 -3 ) -( 16 -14 )= 8.0 pF MAX ( 6 -8 ) - ( 11 -9)=12.0 pF MAX ( V = 20 mV, F = 100 KHz) | LEAKAGE INDUCTANCE | ( 1 -3 ) - ( 16 -14 )= 0.3 uH MAX ( 6 -8 ) - ( 11 -9)= 0.2 uH MAX ( V = 20 mV, F = 100 KHz) | LP (V = 20mV, F = 10 KHz ) | ( 1 -3 ) = 98 uH MIN ( 11 -9)= 70uH MIN 15 - (16 -14)= 42 uH MIN | DCR | ( 1 -3 ), ( 16 -14 )= 0.6 OHM MAX ( 6 -8 ), ( 11 -9)= 0.6 OHM MAX ( 16 -15 ), ( 15 -14 )= 0.3 OHM MAX ( 11 -10 ), ( 10 -9)= 0.3 OHM MAX | BETWEEN CHANNEL ISOLATION | 1500 VAC FOR 60 SECONDS | - - - - 23Z467SMFNL Ethernet Magnetic Transformers For Thru-Hole Or SMD Flexible PCB PRODUCT PICTURE 23Z467SMFNL Ethernet Magnetic Transformers For Thru-Hole Or SMD Flexible PCB HOW TO ORDER 1 - Please send me your datasheet or part number you need.
2 - We will offer the replacement quotation for your reference 3 - The free samples are available for your approval.
4 - After sample testing, we will step into the mass order.
5 - The Proforma Invoice will send for your confirmation 6 - After the goods finished, we send the goods to you and tell you the tracking number.
7 - We will track your goods until you receive the goods.
Remarks: 1 - Sample orders are avaliable.
2 - Price is negotiable for orders of large quantity.
3 - Customized orders (OEM/ODM orders) are avaliable.
4 - Contact us for available flavors list.
International Certifications: 1 - ISO9001: 2008 2 - UL 3 - Reach 4 - RoHs Our service: 1 - 100% tested before shipping 2 - Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, CoilcraftSame quality but better price 3 - Free sample available 4 - Provide new design for customer
Company Contact:
- Posted By: SHAREWAY TECHNOLOGY CO., LTD.
- Phone: 86-0755-32932627
- Address: C711 HUAQIAOXINCUN, MINZHI TOWN , LONGHUA NEW DISTRICT , 518131 , SHENZHEN ,CHINA, Shenzhen , guangdong , China
- Email:
Published date: January 8, 2018
- Business Description: Established in 1998, we have around 500 staff at present.
With the abundant productive capacity , we are able to delivery the goods within the short time.
Moreover, we can provide the professional complete solution for PoE appliication.
