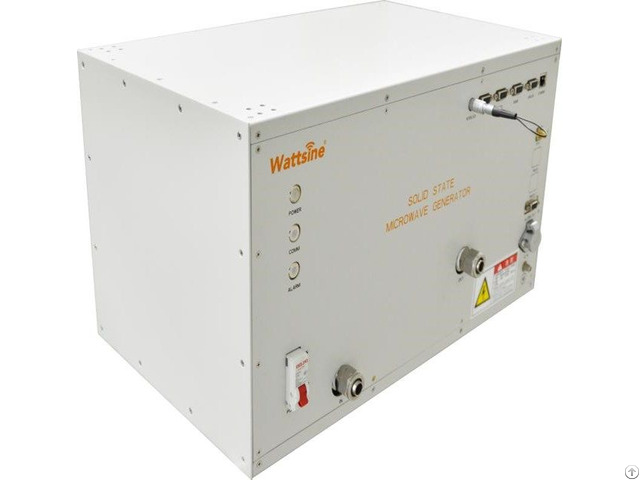

2450mhz 1 5kw Solid State Microwave Generator - China

WSPS-2450-1500W solid-state microwave power generator is a solid-state microwave energy device that professionally used in industry, scientific research and other fields.

Cooling way

Circulating water cooling ; Inlet water temperature：+5～+28℃ ;

Water flow: 6L/MIN Functional characteristics

Control: equipment working state and parameter setting, can view the working state information and configure the working parameters remotely;

Alarm: output power, SWR, current, temperature under detection.

Alarm information can be checked remotely;

Protection: over-VSWR, over-temperature, over-input power, over-current, over-voltage protection.

The system will shut down the RF output automatically when under protection.

Interface definition

Power input : 3-phase 5-line AC power, line voltage is 380V, frequency 50-60HZ, max.

current of each phase is 4.5A;

RF output interface: BJ26 waveguide (FDP26 Standard flange);

Control interface: DB9 Female, RJ45;

Water inlet/outlet : 1/2" Internal thread
