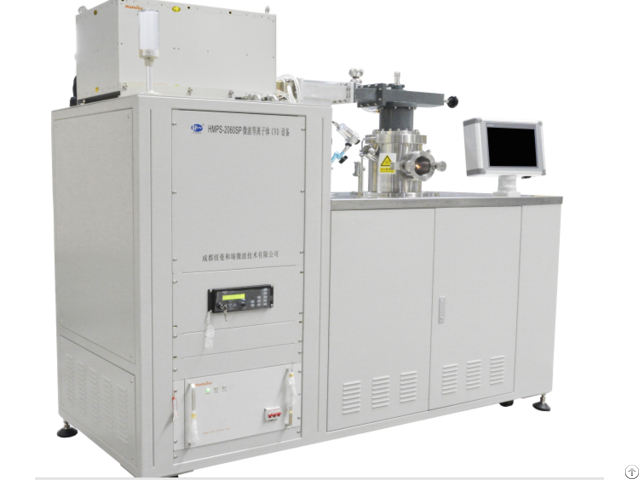

2450mhz 6kw 12kw Microwave Plasma Chemical Vapor Deposition Mpcvd Equipment - China

Performance Characteristics

* New design of microwave reaction chamber with high power density.

* The product has a fast deposition rate and high deposition quality.

* Switch type microwave power supply, high stability of microwave output.

* Advanced performance, safety, strong reliability, good reproducibility and easy operation.

* Multi-parameter real-time monitoring, acquisition and recording, PLC screen control, multiple interlock protection.

Technical Index

(1) Model HMPS-2060S

(2) Power supply AC380±10% V three-phase five-wire system 50Hz, rated input <10KVA (3) Microwave output power 0.5~6kW continuously adjustable (4) Power stability better than 2% (5) Ripple ≤1%

(6) Microwave frequency 2450MHz±50MHz

(7) Temperature measurement method infrared 300~1400℃

(8) Ultimate vacuum degree 6×10-6torr

(9) Working pressure 7torr~250torr

(10) Sample table Φ60mm

(11) Axial adjustment range of the sample stage 0-60mm

(12) Working atmosphere Five-way (customizable)

(13) Microwave leakage value <5mW/cm2

(14) Working environment temperature 15-40℃, relative humidity ≤60%, no corrosive gas

(15) Cooling water >22L/Min
