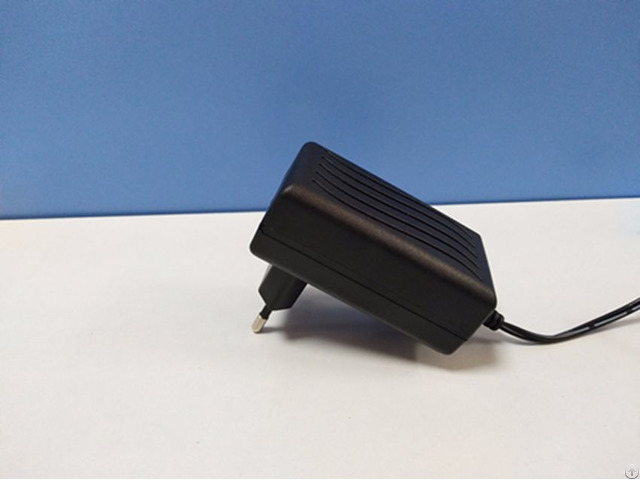

24v 1 5a Ac Dc Adapters Ul Ce Saa Bs Gs Certificate - China

Applications: Wireless telephone, routers, Bluetooth products, digital products, mobile phone chargers, battery chargers, electric toy charger, TV box charger and security camera Product characteristics:

Small volume, streamlined, whole sealing, portability, high cost performance, strong reliability, ultrasonic bonding

Safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA, PSE

Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)

Accept customization of specification, USB output type or power cord output type

Customization: EU standard, American standard, British standard, Australia standard, Korean Standards, Chinese standard

Electrical characteristics:

Input voltage: 100-240V/AC (90-264V/AC)

No-load power consumption: <0.3W max

Output voltage: 5.0-30.0V DC

Output power: 0-36W

Constant-current output: constant voltage output or automatic switch between constant voltage and constant current

Ripple and noises: <200mV max

Lightning surge: up to 1kV (accepts 3kV)

Common specification: 12V DC/2.0A, 12V/2.5A, 12V/3.0A, 9V/3.0A

Output protections:

Short circuit protection

Over-voltage protection

Over-current protection

Over-temperature protection

Environment characteristics

Hi-pot test: 3750V/AC, 60s 5mA max

Insulation resistance: 100mΩ min

Leakage current: 0.25mA max

Operating temperature: 0 to 40°C

Storage humidity: 5-95%RH

Burn-in test: rate load, 40 ±5°C 4 hours

EMC standards: EN55022 class B/FCC Part 15 class B　

EN55024/A1: 2001/EN6100
