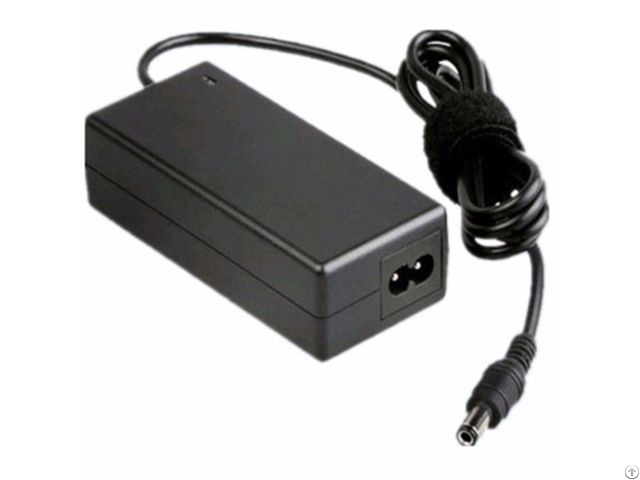

24v 2a Lps Ac Dc Power Adapter Energy Level Vi Ul Gs Ce Cb Bs Pse Kc Bis - China

Applications:

Fixed frequency control circuit, apply to communication products, digital products, energy conservation and environmental protection products, massage equipment, fitness equipment, medical equipment and other household electrical appliances

Product characteristics: safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA, PSE

Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI

(6)

Customization: EU, American, British, Australia, Korean, Chinese standard Electrical characteristics:

Input voltage: 100-240V/AC (90-264V/AC)

Input current: 1.5A max

Frequency: 50/60Hz (47-63Hz)

Output voltage: 4.6-36V

Output current: 0.1-5.0A

No-load power consumption: 0.3W max

Efficiency: 87% min

Ripple and noises: 50-200mV

Line regulation: ±1%

Load regulation: ±5%

Output protections:

Short circuit protection

Over-voltage protection

Over-current protection

Environmental characteristics:

Hi-pot test: 3750V/AC 60s 5mA max

Insulation resistance: 100mΩ min

Leakage current: 0.25mA max

Operating temperature: 0 to 40°C

Storage humidity: 5 to 95%RH

Burn-in test: rate load, 40 ±5°C, 4 hours

EMC standards: EN55022 class-B/FCC part 15 class-BEN55024/A1: 2001/EN61000
