24v Coreless Brushed Servo Motor - China

price: 67.00 Dollar US$

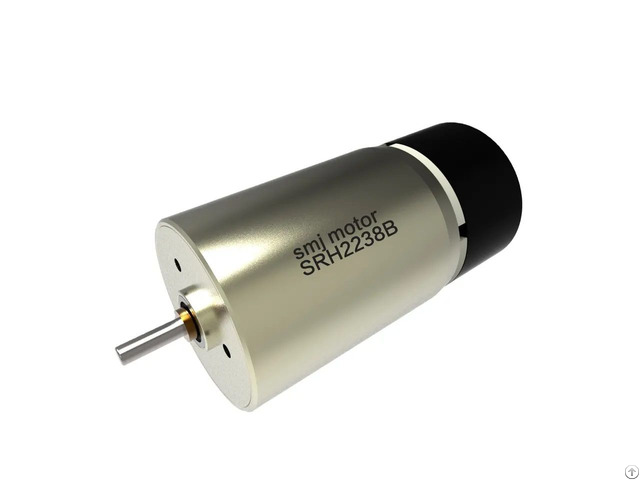

24v Coreless Brushed Servo Motor

Products Photos Catalog 24v Coreless Brushed Photos Catalog

Importanrt: Please ask for the detail specification by email.

Series: SRH223824B

24V coreless brushed servo motor

Voltage: 24V

Design: Brushed

Style: Single wheel

Place of Origin: Shanghai, China

Brand Name: SMJ

Type: servo motor

Torque: 11mNm

Construction: Permanent Magnet

Speed(RPM): 9980rpm

Continuous Current(A): 0.58A

Certification: CE Approved

Efficiency: IE 1

brush type: graphite brushes

stall torque: 64.3mNm

length: 37.8mm

Dia 22mm & L 37.8mm

Ironless, brushed DC servo motor.

Compared with SR series, based on the condition of the same volume, the comprehensive output

power of SRH series motors are increases very much and the efficiency of the motor is improved.


Company Contact:


  • Phone: +8618918851907

  • Address: No.1-2 Lane 330 Rongbei Road, Songjiang Distric, Shanghai , Shanghai , China

  • Email: Email

Published date: June 1, 2023

  • Business Description: Shanghai Mindong Mechanism Electron Co., Ltd is a Japanese leading developers and producers of high performance motors.

    Mindong was founded in 2004 which is a professional manufacturer of ironless linear motors, brushed DC motors and related accessories.

    For more than 18 years research, development and innovation, the quality of our high end motors is comparable with top products of the world.

    Also Mindong still can give customize medium end OEM solution.

    About our factoryMindong can serve customer specific solutions.

    We promise we will give customers same products grade for sample and bulk order.

    Quality is tradition at Mindong, our engineers make long-term mechanical stress tests to correct possible weaknesses under real load.

    As a Japanese organization, we have built on advanced and pragmatic management philosophy and strict quality control flow.

    We are committed to serving our customers through innovation, profession and the high quality system solutions.
