24vdc Low Signal Relays - India

price: check with company for price

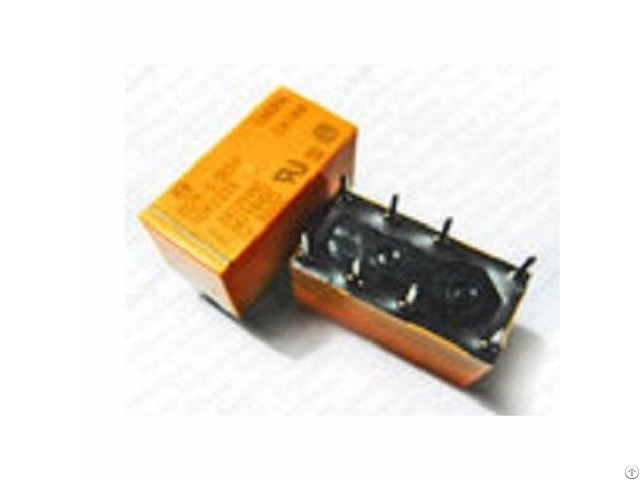

2A 24VDC DPDT SEALED Low Signal Relays -DS2Y-S-DC24V

FEATURES: -

1 - 2 Form C contact

2 - High sensitivity-200 mW nominal

operating power

3 - High breakdown voltage

1500 V FCC surge between open

contacts

4 - DIP-2C type matching 16 pin IC

socket

5 - Sealed construction

APPLICATIONS: -

1 - Telecommunication equipment

2 - Office equipment

3 - Computer peripherals

4 - Security alarm systems

5 - Medical equipment

DESCRIPTION: -

Standard Package 100

Category Relays

Family Signal Relays, Up to 2 Amps

Series DS2Y

Packaging Tray

Relay Type General Purpose

Coil Type Non Latching

Coil Current 8.3mA

Coil Voltage 24VDC

Contact Form DPDT (2 Form C)

Contact Rating (Current) 2A

Switching Voltage 250VAC, 220VDC - Max

Turn On Voltage (Max) 16.8 VDC

Turn Off Voltage (Min) 2.4 VDC

Operate Time 4ms

Release Time 3ms

Features -

Mounting Type Through Hole

Termination Style PC Pin

Contact Material Silver (Ag), Gold (Au)

Coil Power 200 mW

Coil Resistance 2.88 kOhms

Operating Temperature -40°C ~ 70°C

POPULAR PRODUCTS: -POPULAR PRODUCTS: -

5 VDC SPST (1 Form A) Low Signal Relays - PCB, 12 VDC SPDT (1 Form C) 16.7 mA Low Signal Relays - PCB, Latching DPDT (2 Form C) Low Signal Relays - PCB, Latching 3 VDC Gull Wing Lead 11.7 mA Low Signal Relays - PCB, DPDT (2 Form C) Communications Relays Low Signal Relays - PCB, 24 VDC 8 A Low Signal Relays - PCB etc


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India

  • Email: Email
