24vdc Mount Non Latching Through Hole Relay Jw2sn Dc24v - India

price: check with company for price

24vdc Mount Non Latching Through Hole Relay Jw2sn Dc24v

Products Photos Catalog 24vdc Mount Latching Photos Catalog

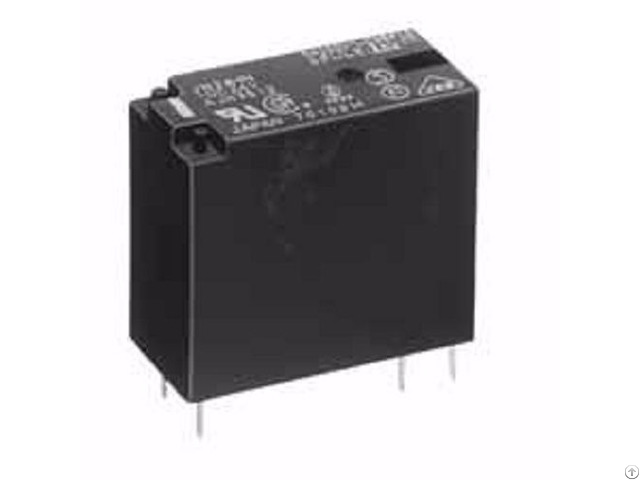

5A 24VDC DPDT PCB Mount Non-Latching Through Hole Relay - JW2SN-DC24V

FEATURES

• Miniature package with universal

terminal footprint

• High dielectric withstanding for

transient protection:

10, 000 V surge in μs between coil and

contact

• Sealed construction

• Class B coil insulation types

available

• TV rated (TV-5) types available

(only for 1 Form A type)

• VDE, TÜV, SEMKO, SEV, FIMKO, TV-5

also approved

• Sockets are available.

APPLICATIONS

1 - Home appliances

TV sets, VCR, Microwave ovens

2 - Office machines

Photocopiers, Vending machines

3 - Industrial equipment

NC machines, Robots, Temperature

controllers

DESCRIPTION: -

Manufacturer: Panasonic

Product Category: General Purpose Relays

RoHS: RoHS Compliant By Exemption Details

Brand: Panasonic Industrial Devices

Coil Voltage: 24 V

Contact Form: DPDT (2 Form C)

Contact Termination: Solder Pin

Mounting Style: Through Hole

Coil Termination: Solder Pin

Coil Type: Non-Latching

Coil Resistance: 1.1 kOhms

Coil Current: 22 mA

Contact Material: Silver Tin Oxide

Packaging: Bulk

Power Consumption: 530 mW

POPULAR PRODUCTS: -

80A latching relays, 120A latching relays, 60A Latching relays, 90A latching relays, 16A latching relays, latching relay 12v, latching relay Omron, latching relay automotive, latching relay dual coil, latched electrical relay, latching relay for energy meter, latching relay for lighting control, latching relay for model railway, latching relay high current, latching impulse relay, latching relay lighting, nais latching relay, latching relay Omron g4q, magnetic latching relay operation, latching relay Panasonic, latching relay single coil, latching relay two coil, latching relay 12 volt, 1 coil latching relay, 4 pole double throw latching relay etc


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India

  • Email: Email

Published date: November 9, 2016
