2a 125vac Remote Monitoring Rtu Control System Gsm Gprs M2m Module Inside - China

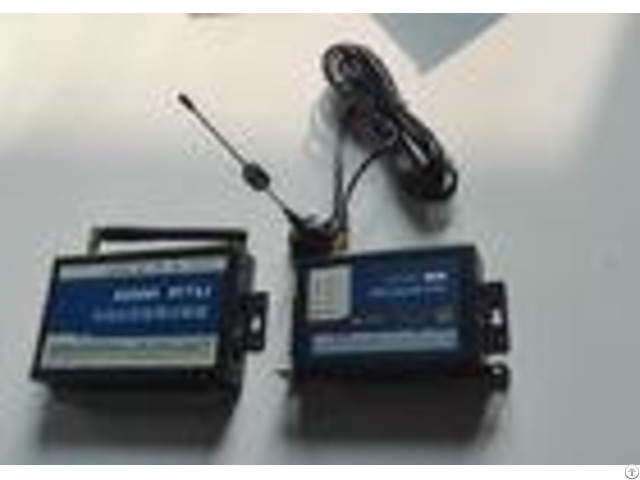

IOT controller with GSM GPRS m2m module inside for remote monitoring System Feature # Adopted highly integrated industrial 32-bit ARM MCU # Double watchdog to ensure stability # With signal filtering mechanisms # Support automatic network reconnection and data re-send # Synchronize clock with multiple way, Sms, NTP, CwtIO Server # Configurable action schedule(second, minute, day, week, month) # Support Interlock programming, Event trigger # Easy used GUI configure software for setting up to 100 parameters # Optional exterior rechargable battery for 8-20 hours working when power lost DI feature # Monitor dry contact(NO or NC) DO(T) feature # Relay drivable output(drive voltage=power supply voltage, Drive current500mA) # on/off/pulse DO by remote control or local event # Status memory function for power lost DO(K) feature # Relay output(NO, contact load: 2A / 125VAC, 220VDC) # on/off/pulse DO by remote control or local event # Remain down status when power lost AI feature # Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision) # Convert 4-20mA(0-5V) to physical value # Support offset and gain, alarm parameters, upload data setting # Detect connect or disconnect to alarm SMS feature # Support 10 cell phone numbers for alarm and control # Any device alarm status can be sent by sending sms # Customizable sms messages, like alarm, receove, report # Query any IO channels status or value via sms command # Activate output by sending sms # Sms report any IO channels status or value on schedule # Sending sms command to update setting # Can query SIM card balance, sms forward # Power lost and recover alarm by sending sms Wireless network communication # Option network: cellular(2g/3g/4g) or Wi-Fi # TCP/IP connect at most 4 servers(support Static IP address or domain) # Events(e.g. alarm, timer) trigger upload data # Communication protocol: Modbus TCP, http post, Cwt_IO(two-way communication) # Can forward data between wireless network with RS485 or RS232

Company Contact:

• Posted By: CWT(HK) Co., Limited

• Phone: 86-755-26719943

• Address: 7/F, Block A, Building F1, TCL International E City, No.1001 Zhongshanyuan Road, Nanshan District, S, Shenzhen , Guangdong , China

• Email:

• Website: https://www.iotgatewaydevice.com

• Business Description: Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well.

  Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and in
