2a 24v 4pdt Signal Relays Ds4e S Dc24v - India

price: check with company for price

2a 24v 4pdt Signal Relays Ds4e S Dc24v

Products Photos Catalog 24v 4pdt Signal Relays Photos Catalog

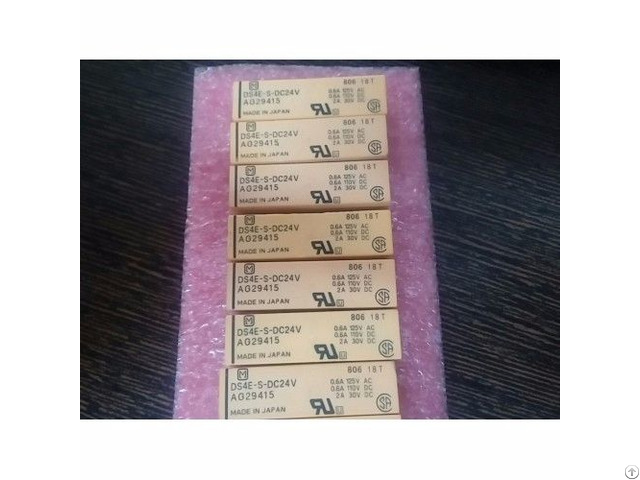

2A 24V 4PDT Signal Relays - DS4E-S-DC24V

FEATURES: -

• High sensitivity: 200 mW pick-up power

100 mW pick-up power types available

• Latching types available

• High switching capacity: 60 W, 125 V A

• High breakdown voltage: 1, 500 V FCC surge between open contacts

1, 000 V AC between open contacts

• DIP-1C type can be used with 14 pin IC socket

2C type can be used with 16 pin IC socket, 4C type can be used with 2 sets of 14 pin IC sockets

• Gold-cap silver palladium types available for 2 Form C type

• Bifurcated contacts are standard

APPLICATIONS: -

• Telecommunication equipment

• Office equipment

• Computer peripherals

• Security equipment

• Measuring instrumentation

DESCRIPTION: -

Standard Package 50

Category Relays

Family Signal Relays, Up to 2 Amps

Series DS

Packaging Bulk

Relay Type General Purpose

Coil Type Non Latching

Coil Current 8.3mA

Coil Voltage 24VDC

Contact Form 4PDT (4 Form C)

Contact Rating (Current) 2A

Switching Voltage 250VAC, 220VDC - Max

Turn On Voltage (Max) 16.8 VDC

Turn Off Voltage (Min) 2.4 VDC

Operate Time 10ms

Release Time 5ms

Features Sealed - Amber

Mounting Type Through Hole

Termination Style PC Pin

Contact Material Silver (Ag), Gold (Au)

Coil Power 200 mW

Coil Resistance 2.88 kOhms

Operating Temperature -40°C ~ 70°C
