2kv Dlo Cable For Wind Turbine - China
price: contact company for price
Voltage

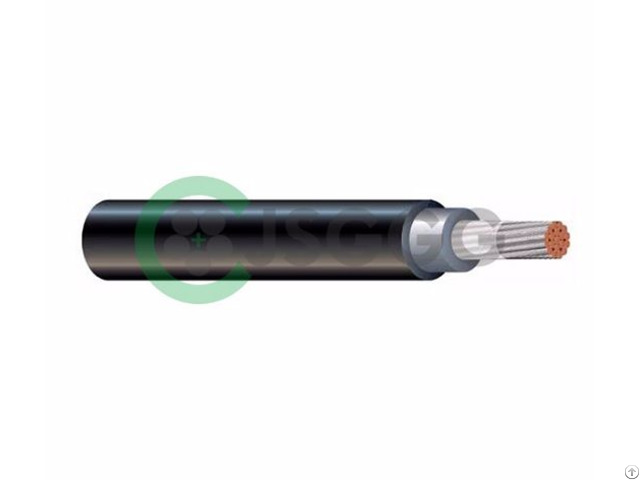

2KV Construction
Sino cables type DLO Cables are manufactured in sizes 6 AWG through 1111.1 kcmil with stranded tinned annealed copper.
A paper or polyester tape separates the conductor from the EPDM rubber insulation to aid in stripping.
A black, heavy duty CPE sunlight resistant jacket is extruded over the insulation.
Standard
UL44, or other standards required by customers.
Features
1 - Max permissible continuous operating temperature of conductor shall not exceed 90℃.
2 - oils, acids, alkalines, heat, flame, sunlight, and abrasion resistant.
3 - RoHs compliant.
4 - bending radius is only 5 times of the outer dia.
of cable.
Applications
1 - DLO is utilized within the turbine and tower, as well as from the tower to the transformer in wind applications.
2 - Suitable for use in wet or dry areas, conduits, ducts, troughs or trays, and where superior electrical properties are desired.
3 - Maximum continuous conductor temperature for normal operation is 90°C in dry locations and 75°C for wet.
Package
steel ＆ wooden reel, wooden reel, steel reel, in coils on wooden tray, or other requirements by customers.
Company Contact:
- Posted By: Jiangsu Sanqi Cable & Wire Co., Ltd,
- Phone: 0513-68971818
- Address: the west end of Yongtong Avenue, Rudong , Jiangsu , China
- Email:
Published date: June 21, 2017
- Business Description: Sino-Cable manufacture cables with AA 8000 series aluminum alloy cable, power cable, rubber cable, solar cable, xhhw-2, use-2, ser/seu, MC, MHF, UD Wire Cable.
