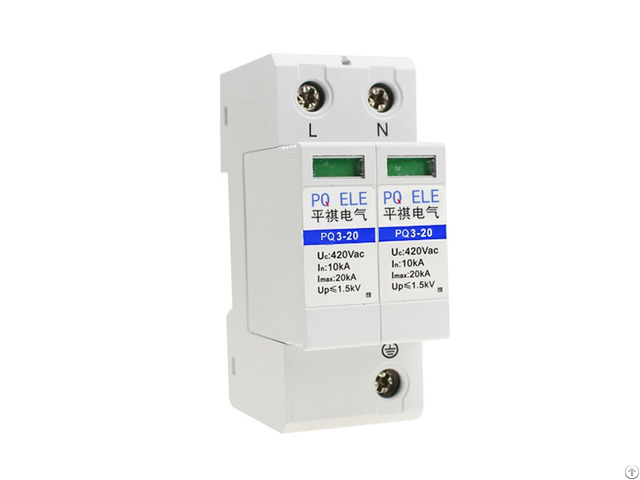

2p 20ka Single Phase Surge Protector - China
price: contact company for price
2p 20kA single phase surge protector SPD design according with GB18802.1/IEC61643-1 standard.
Specification details:
Model PQ3-20
Poles 2P
Max.
continious working voltage(Uc) 420V AC(can customized)
Nominal discharge current(In) 10kA
Max.
discharge current(In) 20kA
Voltage protection level(Up) 1.5kV
Matched circuit breaker/Fuse 32A
Response time <25ns
L/N wire section 2.5mm2
PE section 4mm2
Installation DIN rail
Case protection degree IP20
Operating state/ fault indication Green/ Red
Remote signal function Can also picking
SPD type T2
Company Contact:
- Posted By: Zhejiang Pingqi Electric Co., Ltd.
- Phone: 15558881002
- Address: No. 159 Changjiang road, Liushi town, wenzhou , zhejiang , China
- Email:
- Website: https://www.pq-electric.com
Published date: October 5, 2019
- Business Description: Our Zhejiang Pingqi electric Co., Ltd. Has 7 years manufacturer and export experience.
Exported to 17countries, gained high reputation from overseas customer.
CE certificate gained.
We supply pure sine wave power inverter, surge protector, DC circuit breaker, DC fuse, MC4 connector, DC isolator, MPPT solar controller and other solar items with high quality and competitive price.
OEM and ODM service supply.
We put quality on the top priority, and strictly control on every procedure.
If you are interested in our products or customized service, kindly feel free to contact us.
We'll be pleased to supply you all the best.
