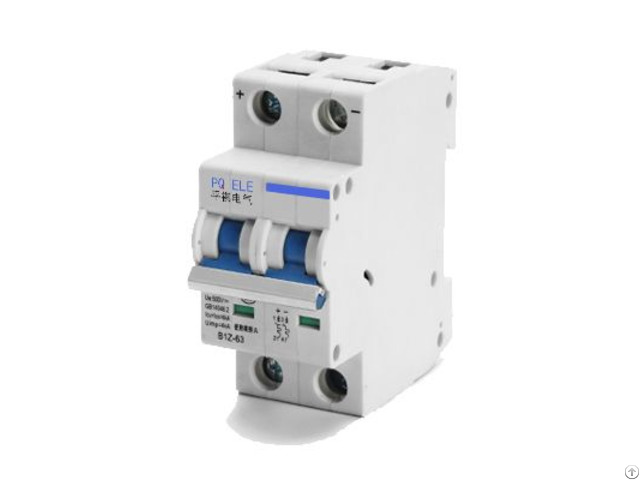

2p 500v Dc Solar Mini Circuit Breaker - China
price: contact company for price
2p 500V DC Solar Mini Circuit Breaker Best Technical Parameter:
Item DC MCB
Code PQB1Z-63
Pole 1P 2P 3P 4P
Voltage 250VDC 550VDC 800VDC 1000VDC
Current 1A, 3A, 6A, 10A, 16A, 20A, 32A, 40, 50A, 63A
Standard IEC/EN60947
Breaking Capacity 6KA, 10KA
Characteristic Curve B, C, D
Working Temperature "-5°"to +40°
Protection Degree IP20
Electrical life More than 8000times
Mechanical life More than 2000times
Dimension(W)X(H)X(D) 18X80X71 36X80X71 54X80X71 72X80X71
Installation 35MM DIN RAIL
Accessory YES
Installation Altitude ≤2000M
Company Contact:
- Posted By: Zhejiang Pingqi Electric Co., Ltd.
- Phone: 15558881002
- Address: No. 159 Changjiang road, Liushi town, wenzhou , zhejiang , China
- Email:
- Website: https://www.pq-electric.com
Published date: October 5, 2019
- Business Description: Our Zhejiang Pingqi electric Co., Ltd. Has 7 years manufacturer and export experience.
Exported to 17countries, gained high reputation from overseas customer.
CE certificate gained.
We supply pure sine wave power inverter, surge protector, DC circuit breaker, DC fuse, MC4 connector, DC isolator, MPPT solar controller and other solar items with high quality and competitive price.
OEM and ODM service supply.
We put quality on the top priority, and strictly control on every procedure.
If you are interested in our products or customized service, kindly feel free to contact us.
We'll be pleased to supply you all the best.
