2transmitter 8 Receiver Rfsoc Airborne Phased Array Radar Signal Processing Module Iw Zu27dr 2t8r - China

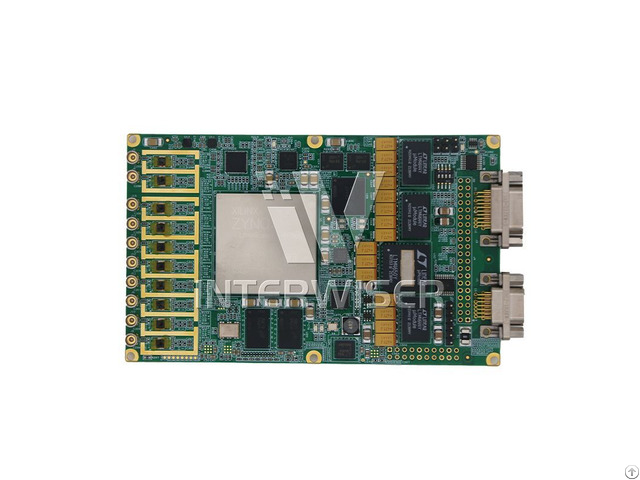

IW-ZU27DR-2T8R is an algorithm evaluation board based on the Zynq UltraScale + RFSoC ZU27DR main chip (high-speed ADC and DAC are integrated inside the IC), supporting multi-board cascading.

It provides a COTS solution that can provide the advantages of RFSoC while more effectively offloading data and enjoying the benefits of COTS: users get the fastest possible deployment while taking advantage of lower cost of ownership, lifecycle support and simplifying future technology insertion.

This product supports 8-channel 12-bit ADC 4.096 GSPS and 8-channel 14-bit DAC 6.4 GSPS.

Product Features

Miniature design: 130mm×80mm size, weight less than 200g, 2 transmitters and 8 receivers, external J30J-21 and J30J-9 interfaces;

Low power consumption: overall power consumption is less than 30 watts;
