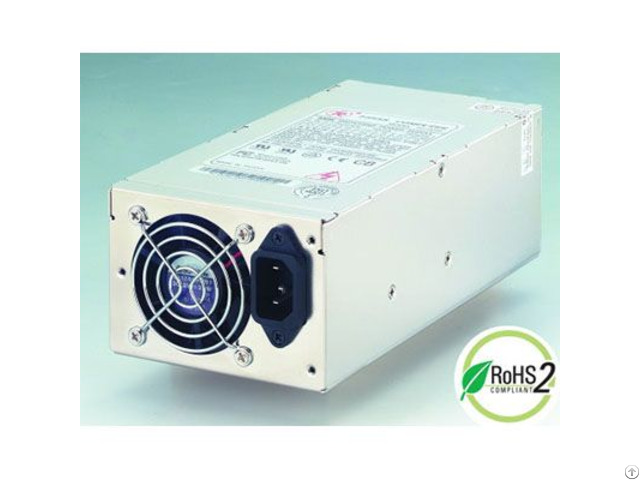

2u Single Power Supply Tc 2u35 - Taiwan
price: contact company for price
(AC to DC)
Safety Approval
Standard 2U dimension
Meet CE Rohs 2.0 2011/65/EU Description:
1 - Watts: 350W
2 - Input:
VOLTAGE: 90~135VAC or 185~260VAC (115/230 auto select)
FREQUENCY: 50/60Hz
INPUT CURRENT: 8A for 115VAC, 4A for 230VAC
INRUSH CURRENT: 60A for 115VAC, 80A for 230VAC MAX.
3 - Dimensions:
L x W x H: 200 x 100 x 70 (mm) / 7.87 x 3.94 x 2.75 (inches)
4 - Others Certificates: RoHS 2.0 FEATURES:
1 - 2U Single.
2 - Auto Select AC input.
3 - Efficiency: ≧ 70﹪at full load.
(Nominal Line)
4 - Hold-Up Time: 16ms at maximum load & normal input voltage.
5 - OVER VOLTAGE PROTECTION.
6 - SHORT CIRCUIT PROTECTION.
7 - OVER POWER PROTECTION.
8 - NO LOAD OPERATION.
9 - ENVIRONMENT TEMPERATURE
Operation Temperature: 0℃ to 40℃
Cooling: By forced air
Storage Temperature: -20℃ to 70℃
Humidity: 5 to 90﹪non-condensing.
10 - RELIABILITY
MTBF OF POWER SUPPLY ELECTRONIS
100, 000 hours at full load and 25℃ ambient temperature
LIFE EXPECTANCY OF FAN
40, 000 hours at 40℃
Company Contact:
- Posted By: Sure Star Computer Co., Ltd.
- Phone: 886-2-26822505
- Address: No. 2-1, Da an Rd., Shulin Dist., , New Taipei City, Taiwan , Taiwan
- Email:
- Website: https://www.surestar.com.tw
Published date: December 24, 2019
- Business Description: Established in 1989, TC Sure Star Computer Co.
has been designing and manufacturing quality industrial power supply units and other related power products, such as Single Power Supply, Redundant Power Supply, power Supply Accessories, etc.
