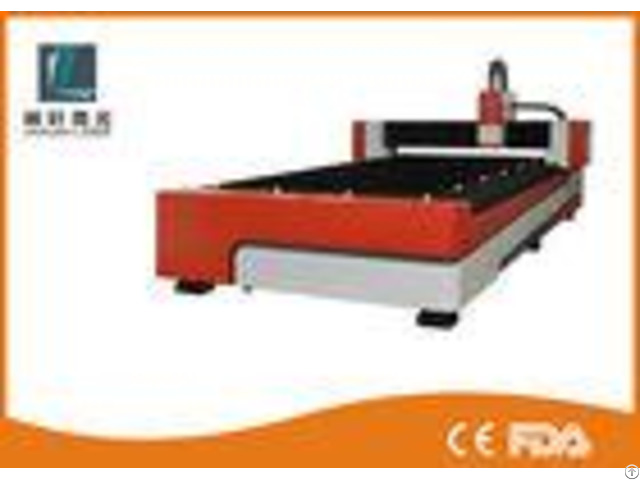

300w Metal Sheet Cutting Machine Industrial Laser Cutter For 1mm 3mm Stainless Steel - China

300W Fiber Laser Metal Sheet Cutting Machine for 1mm - 3mm Stainless Steel Description Machine consists of machine host, computer control systems, fiber laser cutting head, chillers, auxiliary decency components.

Machine gantry structure, using Japan YASKAWA servo motors drive rack and pinion feed, high precision and fast speed, dual-drive gear and rack transmission instead of the traditional ball screw transmission which makes the machine empty moving speed up to 40-50meters/Min.

Bed gantry, machine welded structure, aging treatment after annealing, roughing, finishing, can completely eliminate stress welding and machining, rigid, high precision, can be maintained long-term use not deformed.

Product Features 1 - Fiber laser cutting machine is for metal precise cutting powered by fiber laser technology.

The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions.

The key advantage of a fiber laser is its short beam wavelength (1, 064nm).

The wavelength, which is ten times lower than that of C02 laser, generates high absorption into metals.

This makes the fiber laser become a perfect tool for cutting metal sheets of stainless steel, carbon steel, mild steel, aluminum, brass, etc.

2 - The efficiency of a fiber laser on a large extent exceeds traditional YAG or CO2 laser.

The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal been cut.

3 - Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100, 000 hours of continuous or pulsed operation.

4 - Taishun Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

Application 1 - Kitchen ware sheet metal cutting

2 - Elevator /kitchen ware/hardware metal tag cutting

3 - Metal furniture material cutting 4 - Advertising board sheet metal, stainless steel, aluminum cutting

5 - Metal promotional gift/craft material cutting.

Specifications - - - -

Machine Parameter | Effective Cutting Area | 30001500 mm | X Axis Cutting Length | 3000 mm | Y Axis Cutting Width | 1500 mm | Working Area | 4100*2100mm | X Y Axis Position Accuracy | 0.05 mm | X Y Axis Repeat Position Accuracy | 0.03 mm | Machine Outer Material | Cast Iron | Working Power | 380V | Continuous working time | 24 Hours | - - - -

Cutting Samples Packaging and delivery 1 - Standard plywood case, its compressive strength and bearing quality is better.

2 - the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3 - when importing, the plywood case is with fumigation-free, the procedure is simple.

4 - Delivery Detail: within 20-25days after received your payment.
