30w 350 500 700 1050ma 1 Channel Triac Constant Current Led Driver Eup30t Mc 0 - China

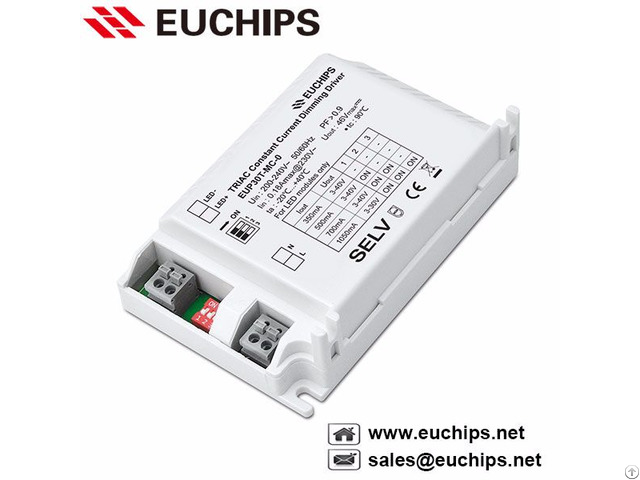

EUP30T-MC-0 is a constant current mode output LED driver.

The output current can be easily set via the DIP dial switch.

The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens etc.

) to achieve a smooth dimming effect.

Feature

1 - Multi-current driver selected by Dip-switch

2 - Support Leading edge (Triac) and Trailing edge (ELV) Dimmer.

3 - Dimming range from 40VAC to 240C.

4 - Dimming effect smooth, no flicker

5 - High efficiency up to 81%

6 - Output short circuit protection

7 - Suitable for indoor LED lighting application, down light, panel light, and so on

Technical Parameter

Model: EUP30T-MC-0

Output Current: 350/500/700/1050mA

Output Voltage: 3-40/3-40/3-40/3-30VDC


Rated power: 14W/20W/28W/31.5W

Current Accuracy: ±5%

Maximum output voltage: 46VDC

Output LF current ripple(< 120 Hz): ＜3%

Channels: 1

Input Voltage: 200~240VAC

Frequency: 50/60Hz

Dimming voltage range: 40~240VAC

Power factor: ≧0.9@230VAC, full load

Efficiency: 81%@230VAC, full load

Input Current: 0.18Amax@230VAC

Inrush current: 20A@230VAC

Protection: Short circuit, shut down the output, restart to recover since fault condition is removed for 10s

Dimming: Triac/ELV

Dimension: 122*78*32mm(L*W*H)

G.

W: 180g

Working temp: -20℃ ~ 40℃

Relative humidity: 20~90% RH
