33hz 10 Bit Precision Iot Gateway Device Controller With Web Cloud Service - China

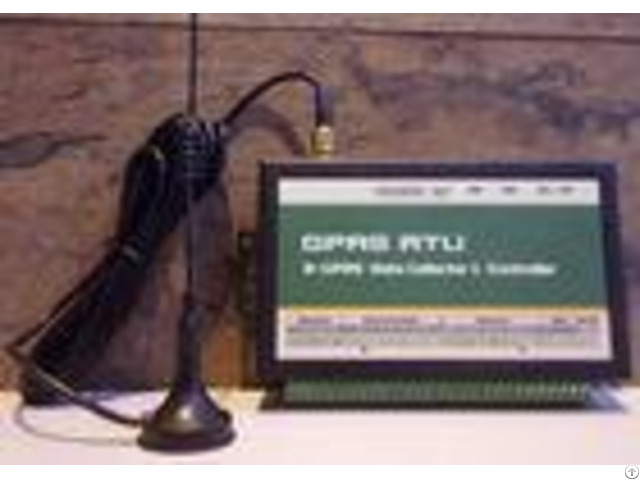

CWT5111 Industrial IOT Cloud Controller with Web Cloud Service Available CWT5111 RTU with 8 DI, 8 DO, 4 AI, RS232 standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches.

System Feature # Adopted highly integrated industrial 32-bit ARM MCU # Reliable performance with built-in double watchdog, 247 operation # With signal filtering mechanisms # Support automatic network reconnection and data re-send # Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server # Configurable action schedule(second, minute, day, week, month) # Support Interlock programming, Event trigger # Easy used GUI configure software for setting up to 100 parameters # Optional exterior rechargable battery for 8-20 hours working when power lost DI feature # Accept NO or NC dry contact DO(T) feature # Relay drivable output(drive voltage=power supply voltage, Drive current500mA) # Remote or local event activate DO on/off/pulse # Remember status when power lost DO(K) feature # Relay output(NO, contact load: 2A / 125VAC, 220VDC) # DO can be activated by remote or local schedule # Status memory function for power lost AI feature # Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision) # Convert 4-20mA(0-5V) to physical value # Support offset and gain, alarm parameters, upload data setting # Detect connect or disconnect to alarm SMS feature # Preset 10 phone numbers (support distribute authority to receive sms) # Any device alarm status can be sent by sending sms # Customizable sms messages, like alarm, receove, report # Remote get device status or value by sending sms command # Activate output by sending sms # Can set interval to report IO channel's status or value by sms # Remote setting via sms commands # Forward simcard overdue sms to admin # Sms alar for power lost and recover # Wireless network communication # Optianal onboard GPRS, 3g, 4g, Wi-Fi module # Communicate with up to 4 servers(IP or domain) by TCP/IP # Events(e.g. alarm, timer) trigger upload data # Communication protocol: Modbus TCP, http post, Cwt_IO(two-way communication) # Transfer RS485 or RS232 Data to wireless network

Company Contact:

• Posted By: CWT(HK) Co., Limited

• Phone: 86-755-26719943

• Address: 7/F, Block A, Building F1, TCL International E City, No.1001 Zhongshanyuan Road, Nanshan District, S, Shenzhen , Guangdong , China

• Email:

• Website: https://www.iotgatewaydevice.com

• Business Description: Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well.

  Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and in
