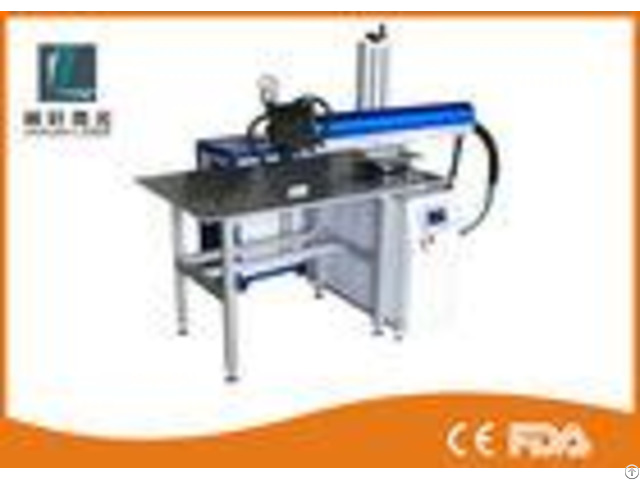

380v 60hz Jewellery Laser Soldering Machine Water Cooling For Solar Silicon - China

380V 60HZ Laser Welding Machine For Solar Silicon / Poly Crystalline Silicon Cells Breif introduction to the machine Automatic laser welder adopts manual programming automatic dual-purpose worktable, electric focusing, 16 group precise waveform control; Suitable for mold repair, and welding all kinds of electronic products; The main advantages as follows:

(1) Electric regulate the lever of laser focus: It is convenient to regulate lever of laser rapidly through the manual button on the panel, which makes the laser focusing become simple and fast.

(2) Positioning function of welding spot: It through the red light direction to find the rough place of welding spot on the workpiece, aiming at the location of welding spot accurately by using Binocular high-magnification microscope observation.

(3) Electric regulating multiple size of scattering mirror (regulating the facula size).

(4) Manual control the movement of XY mobile worktable, optional automatic welding function of Electric control at the same time, which can realize automatic welding of products in high speed.

.

(5) Integrative design, small size, compact structure, so it's Convenient and practical Application for the machine Applicable materials include gold, silver, platinum, stainless-steel, titanium and other metals and their alloys.

It can also be applied to repair abscess of denture and weld tiny precision components such as nickel strip of battery, IC lead, clock hairspring, kinescope and electronic gun.

High precision machine used laser welding from China Techinical Parameters - - - -

Model | LX-D14 | Working table dimension | 300mm X 300mm X 200mm (customized) | Welding depth | 0.1-3.3mm | Max output power | 200W/300W/400W/500W | Laser wavelength | 1064nm | Pulse width | 0.3-20ms | Welding frequency | 1-100HZ | Pump source | Xenon lamp | Single pulse engrgy | 90J | Consumed power | 9KW | Electrical source | 220V 10%/50HZ/40A | Adjustable facula size | 0.2-2mm | Waveform number | 16 | Power consumed | 6KW | Cooling Mode | Water-cooling | Control of worktable | Manual+ CNC Programming (optional) | Consumable material | krypton lamp / filter / water / electricity | Optional accessories | Anti-laser glasses | Usage environment | Clean, no shaking, Temperature 13 C -28 C, humidity 5% -75% | - - - -
