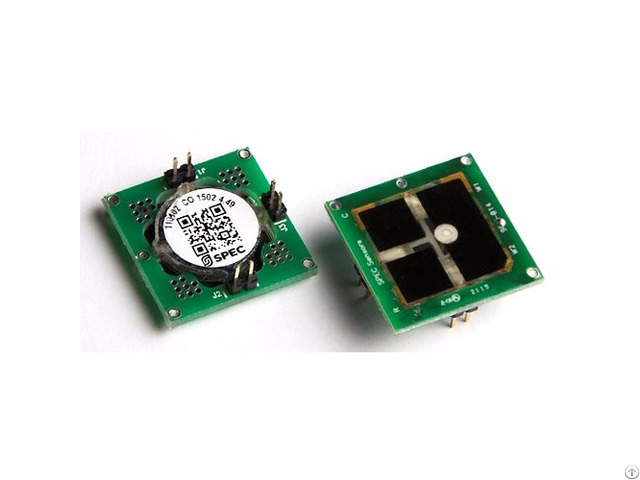

3sp H2s 50 P 15x15 Hydrogen Sulfide Gas Sensor - China

price: check with company for price

3sp H2s 50 P 15x15 Hydrogen Sulfide Gas Sensor

Products Photos Catalog 3sp H2s 15x15 Hydrogen Photos Catalog

3SP_H2S_50 P Hydrogen Sulfide (H2S) Sensor BENEFITS

• Small Size with Low Profile (20x20 x3.0mm)

• Long Life (10 years expected life)

• Fast Response (< 15 seconds)

• Low Power Consumption

• Individually Calibrated (NIST Traceable)

• ROHS Compliant /

3SP_H2S_50 P Hydrogen Sulfide (H2S) Sensor APPLICATIONS

• Fixed Industrial Safety Monitoring

• Portable Industrial Safety Detection

• Portable Personal Safety Monitor

• Indoor Air Quality Monitoring

• Outdoor Air Quality Monitoring

• Bad Breath/Halitosis Respiration Sensing /

3SP_H2S_50 P Hydrogen Sulfide (H2S) Sensor DESCRIPTION

SPEC’s printed sensors offer the performance of the best quality electrochemical sensors at a fraction of the price.

SPEC’s printed sensors are also ultra-thin, offering easy integration into wireless, portable, and networked solutions.

These sensors are ideal for health, environmental, industrial and residential monitoring, because of their high performance, low cost and small size.

/

Measurement Range: 0 to 50 ppm

Resolution: < 5 ppb (instrumentation dependent)

Repeatability: < +/- 3 % of reading

Response Time: < 15 seconds typical

Sensitivity @ 0 mV bias: 212 +/- 87 nA/ppm

Expected Operating Life: > 5 years (10 years @ 23+/-3C; 40+/-10% RH)

Operating Temperature Range: -30 to 55 C (-20 to 40 C recommended)

Operating Humidity Range - non-condensing: 0 to 100% RH (15 to 95% recommended)

Power Consumption: 10 to 50 uW (circuit & ambient H2S dependent)


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: June 14, 2017

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
