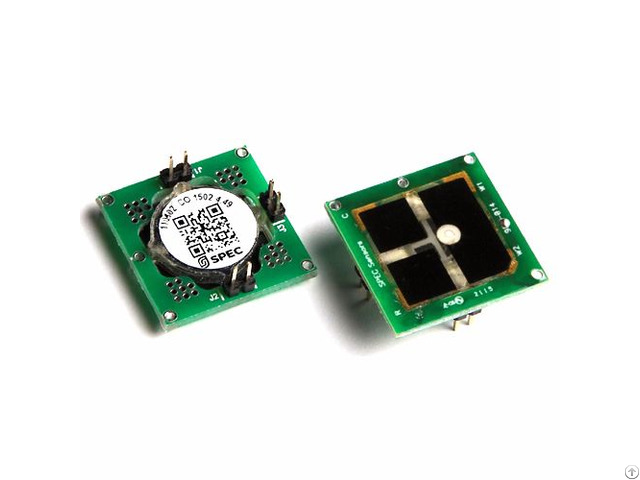

3sp So2 20 P 15x15 Sulfur Dioxide Gas Sensor - China

3SP_SO2_20 P

15x15 SO2 Sensor 20 ppm P Package 110-601 /

3SP_SO2_20 P Sulfur Dioxide (SO2) Gas Sensor BENEFITS

• Small Size with Low Profile (20x20x4 mm)

• Long Life (10 years expected life)

• Fast Response (< 15 seconds)

• Low Power Consumption

• Individually Calibrated (NIST Traceable)

• ROHS Compliant /

3SP_SO2_20 P Sulfur Dioxide (SO2) Gas Sensor APPLICATIONS

• Air Quality Monitoring

• Industrial Safety

• Air Purification Control /

3SP_SO2_20 P Sulfur Dioxide (SO2) Gas Sensor DESCRIPTION

SPEC’s printed sensors offer the performance of the best quality electrochemical sensors at a fraction of the price.

SPEC’s printed sensors are also ultra-thin, offering easy integration into wireless, portable, and networked solutions.

These sensors are ideal for health, environmental, industrial and residential monitoring, because of their high performance, low cost and small size.

/

3SP_SO2_20 P Sulfur Dioxide (SO2) Gas Sensor Speciality

Measurement Range: 0 to 20 ppm

Resolution: < 20 ppb (instrumentation dependent)

Repeatability: < +/- 3 % of reading

Response Time: < 15 seconds typical

Sensitivity @ 200 mV bias: 25 +/- 10 nA/ppm

Expected Operating Life: > 5 years (10 years @ 23+/-3C; 40+/-10% RH)

Operating Temperature Range: -30 to 50 C (-20 to 40 C continuous)

Operating Humidity Range - non-condensing: 0 to 100% RH (15 to 95% continuous)

Power Consumption: 10 to 50 uW (circuit & ambient SO2 dependent)
