45w 500 700 900 1050ma Triac Constant Current Led Dimmable Driver Eup45t 1wmc 0 - China

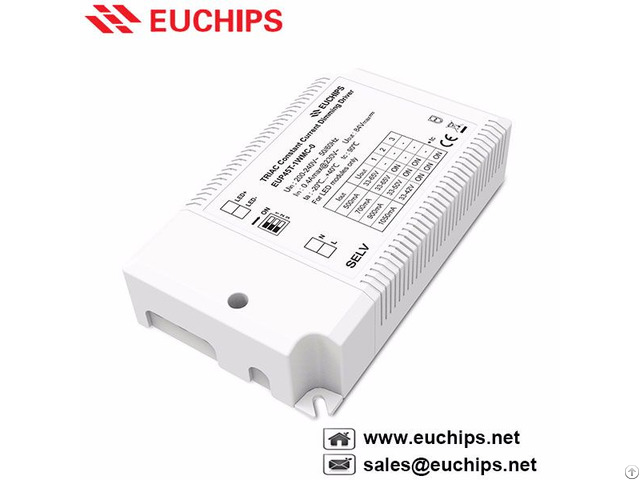

EUP45T-1WMC-0 is a constant current mode output LED driver.

The output current can be easily set via the DIP dial switch.

The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens etc.

) to achieve a smooth dimming effect.

Feature

1 - Multi-current driver selected by Dip-switch

2 - Support Leading edge (Triac) and Trailing edge (ELV) Dimmer.

3 - Dimming range from 40VAC to 240C.

4 - Dimming effect smooth, no flicker

5 - High efficiency up to 87%

6 - Output short circuit protection; over current protection

7 - Suitable for indoor LED lighting application, down light, panel light, and so on

Technical Parameter

Model: EUP45T-1WMC-0

Output Current: 500/700/900/1050mA

Output Voltage: 33-65/33-65/33-50/33-42VD C

Rated power: 32.5/45.5/45/44.1W

Current Accuracy: ±5%

Maximum output voltage: 84VDC

Output LF current ripple(<120 Hz): ＜3%

Channels: 1

Input Voltage: 200~240VAC

Frequency: 50/60Hz

Dimming voltage range: 40~240VAC

Power factor: ≧0.5@230VAC, full load

Efficiency: 87%@230VAC, full load

Input Current: 0.4Amax@230VAC

Inrush current: 20A@230VAC

Protection: Short circuit, Hiccups, recovers automatically after fault condition removed; Over current, Hiccups, recovers automatically after fault condition removed

Dimming: Triac/ELV

Dimension: 137*82*31 mm(L*W*H)

G.

W: 225g

Working temp: -20℃ ~ 40℃

Relative humidity: 20~90% RH
