4ai 4ti Iot Gateway Device Gsm Gprs 3g 4g With Preset 10 Phone Numbers - China

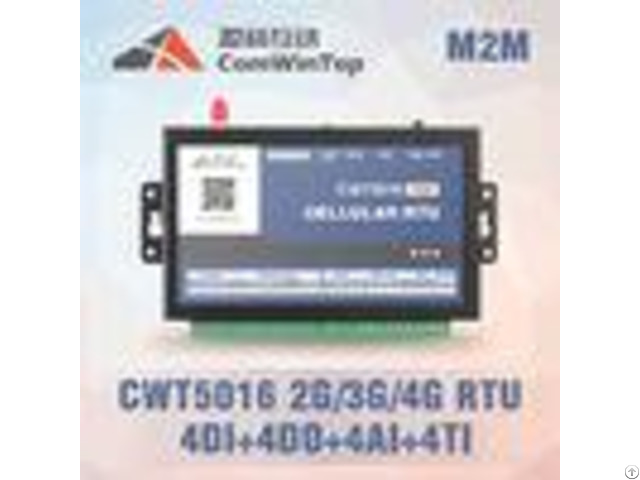

CWT5016 Industrial Iot Gsm Gprs 3g 4g Gateway Data Logger With 4Di 4Do 4Ai 4Ti Port features - - - - Port | Qty | Features | DI (digital input) | 4 | # Accept dry contact # Can be configured as pulse counter input (counting frequency: 10Hz) | DO (digital output) | 4 | # Transistor output (drive voltage=power supply voltage, Drive current500mA # Remote or local event activate DO on/off/pulse # Remember status when power lost | AI (analog input) | 4 | # Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision) # Convert signal to actual measure value, support adjustment # Configurable parameters for signal acquisition, alarm, data communication # Detect connect or disconnect to alarm | TI (temperature& Humidity input) | 4 | # Configurable parameters for alarm (high or lower), record, data communication, adjustment # Fahrenheit or centigrade units for temperature # Detect probe connect or disconnect to alarm | RS232 | 1 | # Configuration port (baud rate: 1200~115200dps, default 9600, n, 8, 1) | - - - - Wireless network communication # Option network: GPRS, 3G, 4G, Wi-Fi # TCP/IP connect at most 4 servers(support Static IP address or domain) # Events(e.g. alarm, timer) trigger upload data # Communication protocol: Modbus TCP, http post, Cwt_IO(two-way communication) # Support two-way data transparent transmission with RS485 or RS232 SMS Communication (available for cellular version) # Preset 10 phone numbers (support distribute authority to receive sms) # Sms alarm when any IO channel triggered or out of preset normal range # Editable alarm and recover sms with time stamp # Query any IO channels status or value via sms command # Control output via sms command # Sms report any IO channels status or value on schedule # Remote setting via sms commands # Can query SIM card balance, sms forward # support power lost sms alarm and recover sms(works with inside battery) Specifications - - - - Core | MCU | Cortex M3 32-bit ARM | Power | Power supply | 9-28V DC (Standard adapter: DC 12V/1.5A) | Consumption | 12V input Max.

150mA/Average 50mA | Network | Wireless Network | Either GPRS(or 3G/4G, need simcard) or Wi-Fi(Not need simcard) Default: GSM/GPRS (4 band 850/900/1800/1900Mhz) Option: WCDMA (3G), FDD LTE(4G) Option: Wi-Fi, 802.11 b/g security WEP/WPA/WPA2 | IO channel | Digital input(DI) | 8 channels, Dry contact trigger | Digital output(DO) | 8 channels, transistor output Output drive voltage=power supply DC voltage Drive current 500mA | Analog Input(AI) | 4 channels, receive 4-20mA(option: 0-5V), Sampling frequency: 33Hz, 10-bit precision, Dual digital filters for anti-noise | Temp Humi Input(TI) | 4 channels | Series port | RS232 | 1 port, baud rate: 1200~115200dps, default 9600, n, 8, 1 | Other interface | SIM/UIM | Standard user card interface | Antenna | Standard SMA female interface (50) | Others | Battery | Optional lithium-polymer, 500mAh/3.7V, life: 8-20 hours | GPS module | Optional | Working Environment | temperature | -30+70 | humidity | 595%(non-condensing) | Physical | Terminals | 214pin 3.81mm spacing, pluggable | Housing | Providing IP30 protection | Dimension | 1308025mm | Weight | 370g | - - - -
