4g Lte Mc7455 Module - China

price: 82.00 Dollar US$

4g Lte Mc7455 Module

Products Photos Catalog Lte Mc7455 Module Photos Catalog

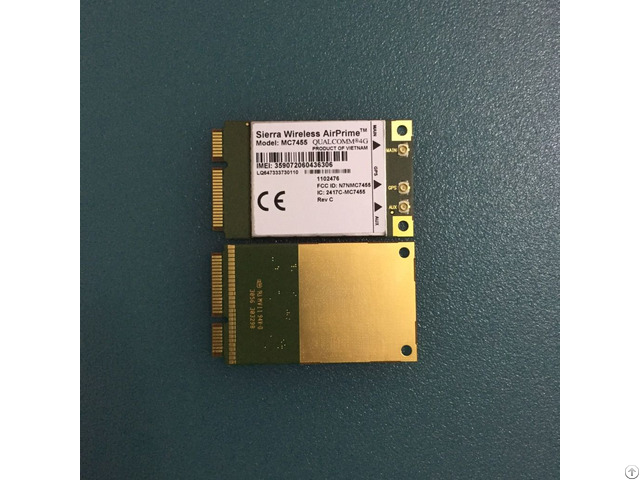

Sierra AirPrime MC7455 PCI Express Mini Card is a compact, lightweight, wireless LTE-Advanced and UMTS based modem.

It provides LTE-FDD, LTE-TDD, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, and GNSS connectivity for networking, and M2M applications over several radio frequency bands and supports 3G roaming.

Sierra MC7455 is a 4G LTE cat.

6 module (FDD & TDD), with a down link data rate of up to 300 Mbps, primarily for Europe, North and South America.

Support for Carrier Aggregation (CA) and MIMO.

Fall back to 3G DC-HSPA+ with Rx diversity.

It has a brother model Sierra MC7430 which is also a LTE Cellular module with Category 6 - Sierra Wireless AirPrime MC7455 Technical Specifications: * Form factor: PCIe Mini Card * Chipset: Qualcomm MDM9230 * Air interface: 4G-LTE cat 6 (FDD & TDD) with CA (Carrier Aggregation) and MIMO, 3G-HSPA+DC with Rx Diversity, GNSS * Support 4G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B20 (800), B25 (1900), B26 (850), B29 (700), B30 (2300), B41 (2500/TDD) * Support 3G bands: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B8 (900) * Support LTE Peak Data rate: DL 300 Mbps, UL 50 Mbps * GNSS (GPS, Glonass, Beidou, Galileo*): Qualcomm * Regulatory: FCC, IC, CE, NCC, GCF, PTCRB * Dimensions: 51 x 30 x 2.5 mm * Supply Voltage: 3.3 V nominal * Operating Temperature: -40°C to +85°C * Supported Carriers: AT&T, Verizon, Sprint, Vodafone - Control, Software and Features * Control options: AT Commands, QMI SDK, MBIM * For optimum control the QMI SDK is recommended * Drivers: Android, Linux, Windows * Switch networks anytime with up to three different certified firmware variants on board.

- Connectors * System connector: 52 position Mini PCIe * Antenna RF connector: 3x U.

FL (Main RF, Aux RF, GPS with DC bias) - Interfaces * 1x USB 3.0 and USB 2.0 High Speed

* 1x Wake host

* 1x Wireless disable

* 1x System RESET

* 3x Antenna Control (muxed with GPIO 1-3)

* 1x Dynamic Power Control, DPR (muxed with GPIO 4)

* 4x GPIO (muxed with Antenna control or DPR)

* 1x LED driver output

* 2x SIM interface: 1.8/3V

* 1x Digital Audio - Audio * Optional * Digital audio: PCM/I2S * 4G: VoLTE * 3G: Circuit Switched Fall Back (CSFB voice)


Company Contact:


  • Phone: 15802508667

  • Address: Futian district, Shenzhen , Guangdong , China

  • Email: Email


Published date: May 6, 2020

  • Business Description: Goodview Golbal Limited is established in 2012year, which mainly holds stock of SIMCOM, QUECTEL, HUAWEI, SIERRA, ESPRESSIF, WINBOND and LINEAR brand chips.
