4g Lte Me909s 120 Module - China
price: 38.00 Dollar US$

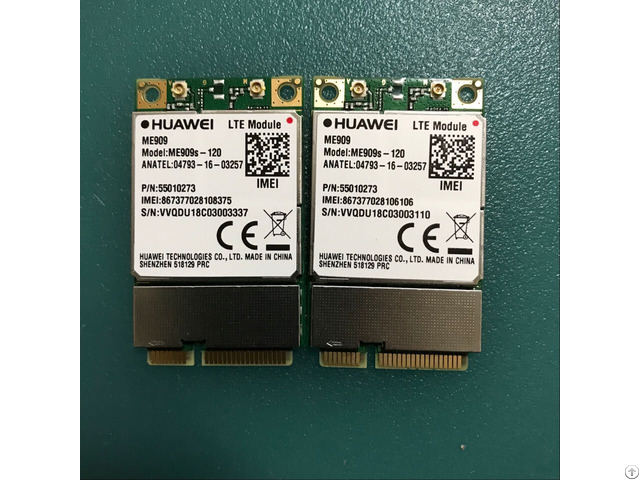

ME909s-120 is the first LTE cat4 module based on Hi-Silicon chipset.
Which is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle ematics, tracking, payment, industrial router, safety monitor and industrial PDAs.
ME909s-120 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands.
ME909s-120(B1/B2/B3/B4/B5 /B7/B8/B20) supports EMEA region, and has two different form factors: LGA and Mini PCIe form factor.
With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-120 - All Huawei modules comply with the RoHS directive and Regional certification.
Form Factor Mini-PCIe
ME909s-120 Mini PCIe: Bands:
LTE (FDD): B1, B2, B3, B4, B5, B7, B8, B20
DC-HSPA+/HSPA+/HSPA/UM TS : B1, B2, B5, B8
EDGE/GPRS/GSM: 850/900/1800/1900 MHz Data Transfer Rate:
DC-HSPA+ : Downlink: 42 Mbps, Uplink: 5.76 Mbps
LTE FDD: Downlink: 150 Mbps, Uplink: 50 Mbps @Bandwidth 20M (CAT4) Interface:
Mini PCIe interface
Antenna interface
USB 2.0 High speed
PCM Voice
SIM Card
LED
Power supply
Reset Power Supply:
3.2 V to 4.2 V (3.8 V recommended) Temp Range:
-40℃ to 85℃ Voice:
PCM Voice
DTMF Special Features:
CDC-ECM
FOTA
Firmware Update via USB
Embedded UDP/TCP/FTP(s)/HTTP(s) stack
High-speed UART
CMUX
Sleep mode Operating System:
Linux, Android, WinCE, Windows 8/10 Approvals:
CE
GCF
RoHS & WEEE Compliant
Company Contact:
- Posted By: Goodview Global Limited
- Phone: 15802508667
- Address: Futian district, Shenzhen , Guangdong , China
- Email:
- Website: http://www.sz-goodview.com/
Published date: May 6, 2020
- Business Description: Goodview Golbal Limited is established in 2012year, which mainly holds stock of SIMCOM, QUECTEL, HUAWEI, SIERRA, ESPRESSIF, WINBOND and LINEAR brand chips.
