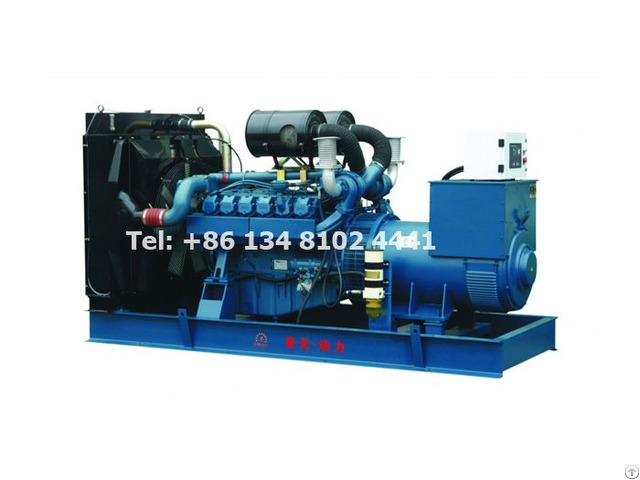

550kw 687 5kva Doosan Daewoo Diesel Generator Set - China

Deutz diesel generator set installation and engine room design 1 - The Deutz diesel generator set is installed on the concrete floor: a.

A reinforced concrete base should be poured on the floor;

b.

The concrete base should pass the pressure test above 173KPa for one month;

c.

The concrete base should be at least 150mm higher than the floor, and extend at least 150mm on each side of the chassis of the unit;

d.

"J" or "L" type anchor bolts should be embedded on the cement base.

2 - The Deutz diesel generator set is fixed on the chassis fuel tank: a.

A shock absorber must be installed between the engine, the engine and the fuel tank;

b.

The structure and strength of the fuel tank must be able to withstand the static and dynamic loads of the unit;

c.

There must be a certain distance between the bottom of the fuel tank and the ground for easy maintenance; 3 - Deutz diesel generator room design a.

The units should be arranged horizontally, and can be arranged vertically when restricted by the building site;

b.

When the machine room is adjacent to the control room, the generator outlet and the cable trench should be close to the power distribution room;

c.

The battery should be close to the starter motor side;

d.

There should be enough fresh air inlets in the machine room, hot air and exhaust flue should extend outside, the air inlet should be set on the motor side, and the air outlet should be set on the water tank side;

e.

The machine room should adopt comprehensive control measures for unit noise reduction and machine room sound insulation.
