5vdc Slim Power Relays Aldp105w - India

price: check with company for price

5vdc Slim Power Relays Aldp105w

Products Photos Catalog 5vdc Slim Power Relays Photos Catalog

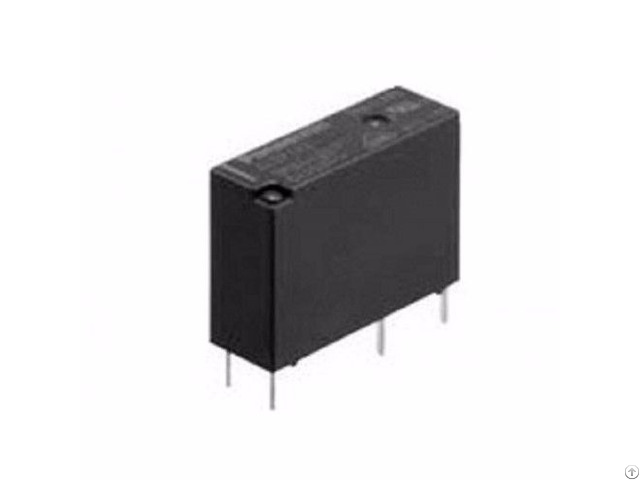

5A 5VDC SPST Slim Power Relays - ALDP105W

FEATURES: -

1 - Nominal switching capacity: 5A 277V AC

2 - Slim type: 20.5 (L) × 7.2 (W) × 15.3 (H) mm

3 - Ambient temperature: –40°C to +85°C

4 - Excellent heat resistance and tracking performance

APPLICATIONS: -

1 - Boilers

2 - Air conditioner

3 - Refrigerator

4 - Hot water units

5 - Microwave ovens

6 - Fan heaters

DESCRIPTION: -

Standard Package 100

Category Relays

Family Power Relays, Over 2 Amps

Series ALDP

Packaging Tray

Relay Type General Purpose

Coil Type Non Latching

Coil Current 40mA

Coil Voltage 5VDC

Contact Form SPST-NO (1 Form A)

Contact Rating (Current) 5A

Switching Voltage 277VAC - Max

Turn On Voltage (Max) 3.75 VDC

Turn Off Voltage (Min) 0.25 VDC

Operate Time 10ms

Release Time 10ms

Features -

Mounting Type Through Hole

Termination Style PC Pin

Contact Material Silver Nickel (AgNi)

Coil Power 200 mW

Coil Resistance 125 Ohms

Operating Temperature -40°C ~ 85°C

Online Catalog ALDP Series
