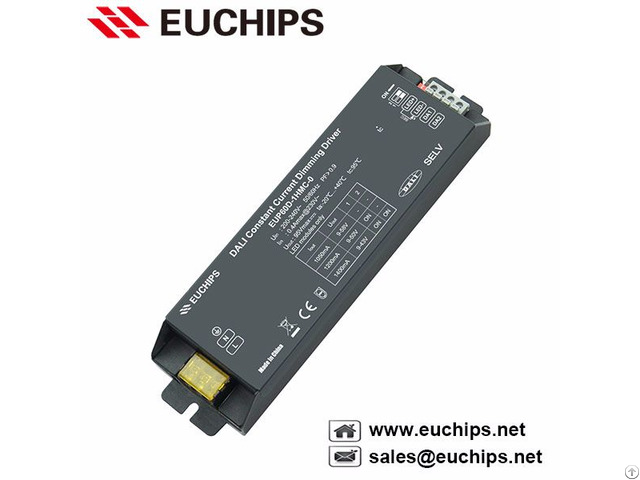

60w 1050 1200 1400ma 1 Channel Dali Constant Current Led Driver Eup60d 1hmc 0 - China

Features

1 - Signal channel output, output current level selected by DIP S.W.

2 - Meet DALI Protocol IEC 62386

3 - Support Touch DIM dimming

4 - THD≤10%

5 - Low ripple current, no flicker

6 - High efficiency up to 86%

7 - Built-in active PFC function

8 - Over voltage & short circuit & over power protection

9 - Suitable for indoor LED lighting application, such as down light, panel light, and so on

Technical Parameter

Model: EUP60D-1HMC-0

Output Current: 1050/1200/1400mA

Output Voltage: 9-58/9-50/9-43VDC

Power: 60W

Current Accuracy: ±3%

Maximum Output Voltage: 95VDC

Output LF Current Ripple(< 120 Hz): ＜3%

Channels: 1

Input Voltage: 200~240VAC

Frequency: 50/60Hz

Power Factor(@230VAC, full load): ≥0.9

THD(@230VAC, full load): ≤10%

Efficiency(Type): 86%

Input Current: 0.4Amax@230VAC

Inrush Current: Cold start 27A(twidth=5.4us measured at 50% Ipeak) @230VAC

Dimming: DALI, Touch DIM

Dimension: 203.4*53.9*32.6 mm(L*W*H)

G.

W: 410g

Working temp: -20℃ ~ 40℃

Relative humidity: 20~90% RH
