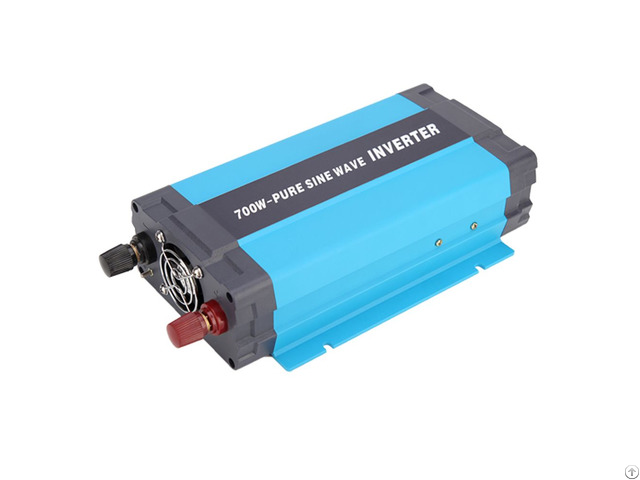

700w Pure Sine Wave Dc To Ac Power Inverter - China

700W Pure Sine Wave DC to AC Power Inverter The input voltage, output voltage and frequency, and overall power handling depend on the design of the specific device or circuitry.

The inverter does not produce any power; the power is provided by the DC source.

Advantages:

1 - Adopt advanced CPU intelligent control

2 - Complete protection function

3 - USB interface for 5V 2A

4 - Customize frequency switch

5 - Customize un-common DC input voltage range

6 - Can match remote switch, 3meters away to control power-on/off

7 - Supply OEM brand service.

Main data details:

Model PQ-700S

Input DC voltage 12V 24V 48V

Voltage range 10V-15.5V DC 20V-30V DC 40V-60V DC

No load current draw 0.6A 0.2A 0.15

Efficiency > 90%

Output AC voltage 100/110/120V AC or 220/230/240V AC

Continuous power 700W

Surge power 1400W

Waveform Pure sine wave

Frequency 50Hz or 60Hz

USB Output 5V DC 1A

AC regulation 3%

Protection Low voltage alarm 10.5V DC±0.5V 21V DC±0.5V 42V DC±1V

Low voltage shut down 10V DC±0.5V 20V DC±0.5V 40V DC±1V

Short circuit Shut off output automatically

Over load Shut off output

Over voltage shut down 15.5±1V 30±1V 60±2V

Over thermal Shut off output automatically

Environment Working temperature -10ºC and +50ºC

Working humidity 20%~90%RH

Storage temperature -30ºC ~ +70ºC

Package Machine size(L*W*H)mm 262*142.2*65

Net weight KG 1.16

Gross weight KG 1.49

Packing size mm 310*170*110

Package quantity pcs 6

Outer packing size mm 540*330*250
