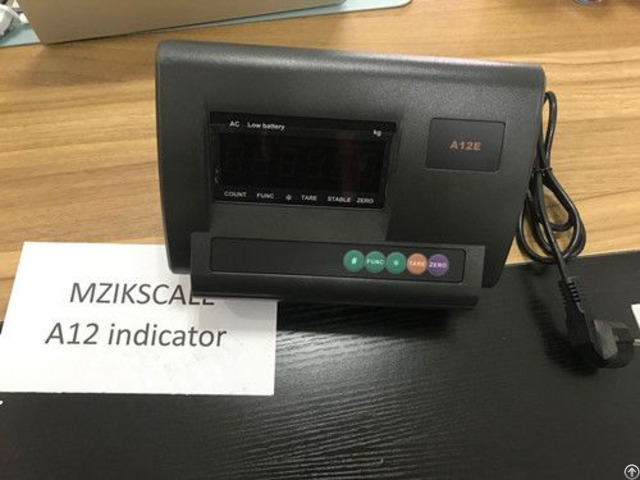

A12 Weighing Indicator Lcd Led - China

price: 25.00 Dollar US$

1 - Standard Function: ◆High precision A/D conversion with readability 1/30000 ◆Call and display inner code to replace weight observing and analysis tolerance ◆Special digital filtering technology to strengthen anti-vibration ability ◆Able to set up zero-tracking range, zero(auto/manual) range ◆Able to set up digital filter intensity, range and stable time ◆With counting function (unit weight data save protection in case of power off) ◆Selectable backlight mode ◆AC/DC power supply, with built-in rechargeable 6V/4AH battery ◆Alarm for low battery and auto power off at low battery ◆Optional of RS232 interface with selectable baud rate and communication method ◆Optional of scoreboard interface sending by 20mA current loop Nonstandard Function( Optional, please inform sales staff if need): ◆KG/LB switch function ◆Auto calculating average function ( For livestock scale) 2 - Technical parameter: ◆A/D conversion method: ∑-Δ ◆A/D conversion speed: 10 times/sec.

◆Max.

A/D conversion bits: 20 ◆Input signal range: -10mV~15mV ◆Input sensitivity: ≥1 μV/e ◆Load cell excitation: DC 5V; I≤150mA ◆Max.

connection number of load cell: 4 at 350 ohm ◆Load cell connection mode: 6 wire ◆Verified counts: 3000 ◆Max.

external counts: 30000 ◆Max.

internal resolution: 300000 ◆Division: 1/2/5/10/20/50 optional ◆Display(XK3190-A12): 6 bits LCD, 6 status indications ◆Display(XK3190-A12E): 6 bits LED, 6 status indications ◆Display range: -2000~150000(d=10) ◆Optional: Scoreboard interface serial sending signal by current loop with baud rate 600 ◆Transmission distance: Current loop≤2000 meters ◆Interface type: RS232C serial communication interface, with selectable baud rate by continuous sending method or on command method ◆Baud rate seletable: 1200/2400/4800/ 9600 ◆Transmission distance: RS232C≤30 meters ◆Power supply: AC 187~242V, 49~51Hz; DC built-in rechargeable 6V/4AH battery


Company Contact:


  • Phone: 0086-13651508310

  • Address: hutang , changzhou , jiangsu , China

  • Email: Email


Published date: May 21, 2020

  • Business Description: truck scale,floor scale,bench scale,pallet scale,crane scale,desk scale,portable scale,accessory,loadcells ,indicator,display.

    kitche n scale,hanging scale
