A9 Indicator For Truck Scale Weighbridge - China

price: contact company for price

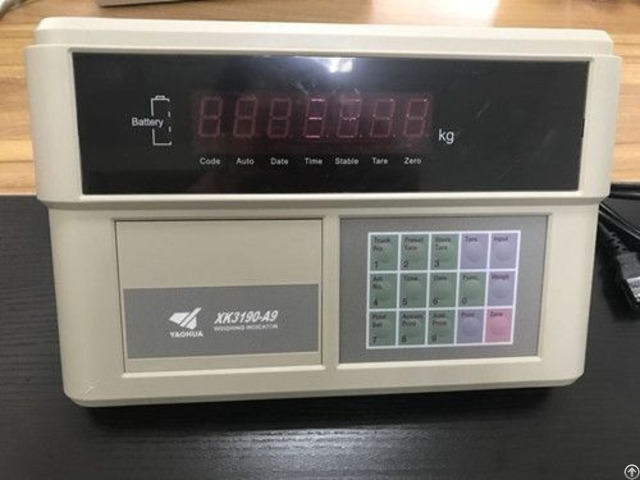

A9 Indicator For Truck Scale Weighbridge

Products Photos Catalog Indicator Truck Scale Photos Catalog

1 - Feature: ◆Compatible with all functions of model XK3190-A9; ◆∑-Δ high precision A/D conversion method, able to process input signal from -16mV to 18mV ◆Good consistency, no need to re-calibrate a scale if change the former indicator, high precision ◆DC power socket with anti-connect and anti-short circuit protection; ◆With strong anti-disturbance function 2 - Standard Function: ◆AC/DC power supply, standard chargeable battery ◆7-bits 0.8 inch LED display, 3-level battery indications ◆Able to setup zero-tracking range, zero(auto/manual) range ◆With 2-point calibration correction function, 2 compensation calibration methods ◆Able to save 1001 weighing records, 1000 truck records consisting of truck ID and corresponding tare weight, 201 records of goods ◆Able to print across and upright weighing bill ◆Able to print different statistical reports ◆Standard RS232 communication interface(RS422/RS485 optional) ◆Standard scoreboard interface with current loop ◆Standard parallel print interface ◆Able to connect assigned thermal printer ◆XK3190-A9+P with built in printer 3 - Technical parameter ◆A/D conversion method: ∑-Δ ◆Input signal range: -16mV~18mV ◆A/D conversion speed: 10times/sec.

◆A/D conversion code: 1 million code ◆Load cell excitation: DC 5V ◆Max.

connection number of load cell: 8 at 350 ohm/16 at 700 ohm ◆Load cell connection mode: 6 wire, auto compensation for long distance ◆Division: 1/2/5/10/20/50/100 optional ◆Clock: real clock without effect when power off ◆Transimission: current loop/RS 232 signal ◆Baud rate: 600 ◆Transimission distance: ≤30 meters ◆Serial communication: interface ◆Transimission method: RS232/RS422(option al)/RS485(optional) ◆Baund rate: 600/1200/2400/4800/9 600(optional) ◆Transmission distance: RS232: ≤30 meters;RS422/RS485: ≤120 0 meters Print interface ◆Standard parallel output interface ◆Built-in micro-printer(A9+P) ◆Data storage: 1000 truck records consisting of truck ID and corresponding tare weight 201cargo ID.

1001 weighting records ◆Power supply: AC 220V(-15%-+10%);50Hz(-2%- +2%) DC 6V/10Ah External battery rechargeable


Company Contact:


  • Phone: 0086-13651508310

  • Address: hutang , changzhou , jiangsu , China

  • Email: Email


Published date: May 21, 2020

  • Business Description: truck scale,floor scale,bench scale,pallet scale,crane scale,desk scale,portable scale,accessory,loadcells ,indicator,display.

    kitche n scale,hanging scale
