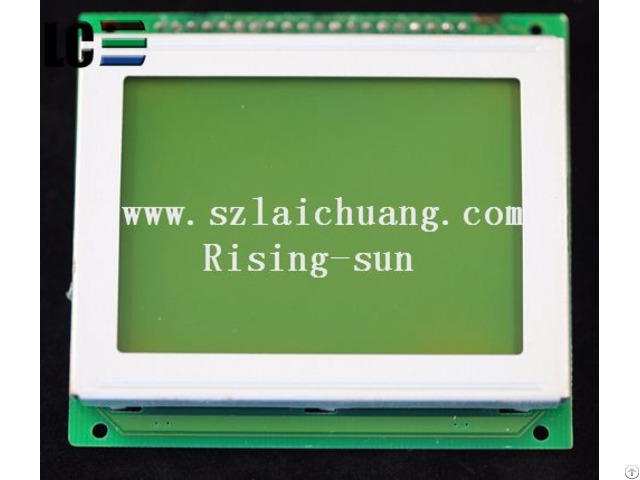

Ag12864cyiqy A Stn Lcd Moudle 128 64 Rising Sun - China

Mechanical Data

Item Standard Value Unit

Module Size 78.0 (W) x70.0 (H) x 10 - 5/13.0(T) mm

Viewing Area 62.0 (W) x44.0 (H) mm

Display Area 56.28(W)x 38.36(H) mm

Dot Pitch 0.44(W)*0.60(H) mm



Absolute Maximum Ratings

Parameter Symbol Min Max Unit

Supply Voltage for logic VDD -0.3 5.5 V

Input voltage VI VSS VDD V

Operating Temp TOP -20 70 ℃

Storage Temp TST -25 80 ℃



Parameter Symbol Conditions Min.

Typ.

Max.

Units

Supply Voltage (Logic) VDD - VSS -- 4.5 5 5.5 V

Supply Voltage (LCD Drive) VDD – VO -- -- 9.2 -- V

VDD - VO Shown in 3.1 V

High Level (Input Voltage) VIH -- 0.7VDD -- VDD V

Low Level (Input Voltage) VIL -- VSS -- 0.3VDD V

High Level (Output Voltage) VOH IOH = -0.5mA 3 -- -- V

Supply Current IDD VDD = 5.0V -- 3 -- mA

IEE VDD =5.0V -- -- -- mA

Frame fF Duty = 50% -- 70 -- Hz
