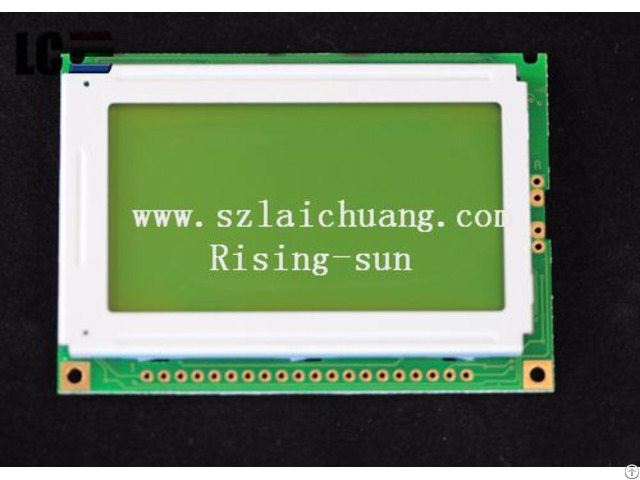

Ag12864eyiqy Ampire 128 64 Stn Lcd Moudle - China

Mechanical Data

Item Standard Value Unit

Module Size 75.0 (W) x 52.7 (H) x 6.8/9.0(T) mm

Viewing Area 60.0 (W) x32.5 (H) mm

Display Area 55.01(W)x 27.49(H) mm

Dot Pitch 0.43(W)*0.43(H) mm



Absolute Maximum Ratings

Parameter Symbol Min Max Unit

Supply Voltage for logic VDD -0.3 5.5 V

Input voltage VI VSS VDD V

Operating Temp TOP -20 70 ℃

Storage Temp TST -25 80 ℃



Parameter Symbol Conditions Min.

Typ.

Max.

Units

Supply Voltage (Logic) VDD - VSS -- 4.5 5 5.5 V

Supply Voltage (LCD Drive) VDD – VO -- -- 8.1 -- V

VDD - VO Shown in 3.1 V

High Level (Input Voltage) VIH -- 0.7VDD -- VDD V

Low Level (Input Voltage) VIL -- VSS -- 0.3VDD V

High Level (Output Voltage) VOH IOH = -0.5mA 3 -- -- V

Supply Current IDD VDD = 5.0V -- 3 -- mA

IEE VDD =5.0V -- -- -- mA

Frame fF Duty = 50% -- 70 -- Hz
