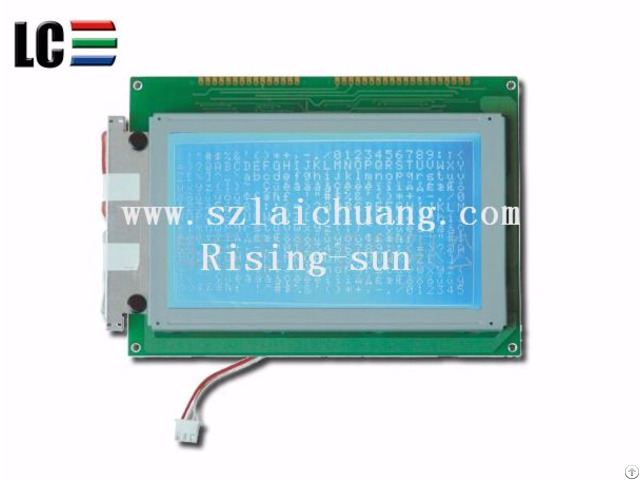

Ag240128g 240 128 Stn Lcd Moudle Rising Sun - China

Mechanical Data

Item Standard Value Unit

Module Size 144*(W) x 104.0 (H) x15(T) mm

Viewing Area 114.0 (W) x 64.0 (H) mm

Display Area 107.95(W)x 57.55(H) mm

Dot Pitch 0.45(W)*0.45(H) mm



Absolute Maximum Ratings

Parameter Symbol Min Max Unit

Supply Voltage for logic VDD -0.3 5.5 V

Input voltage VI VSS VDD V

Operating Temp TOP -20 70 ℃

Storage Temp TST -25 80 ℃



Parameter Symbol Conditions Min.

Typ.

Max.

Units

Supply Voltage (Logic) VDD - VSS -- 4.5 5 5.5 V

Supply Voltage (LCD Drive) VDD – VO -- -- 17.7 -- V

VDD - VO Shown in 3.1 V

High Level (Input Voltage) VIH -- 0.7VDD -- VDD V

Low Level (Input Voltage) VIL -- VSS -- 0.3VDD V

High Level (Output Voltage) VOH IOH = -0.5mA 3 -- -- V

Supply Current IDD VDD = 5.0V -- 25 -- mA

IEE VDD =5.0V -- 6 -- mA

Frame fF Duty = 50% -- 64 -- Hz
