Aluminum Alloy Cable Mc - China

Voltage

600V or less Construction

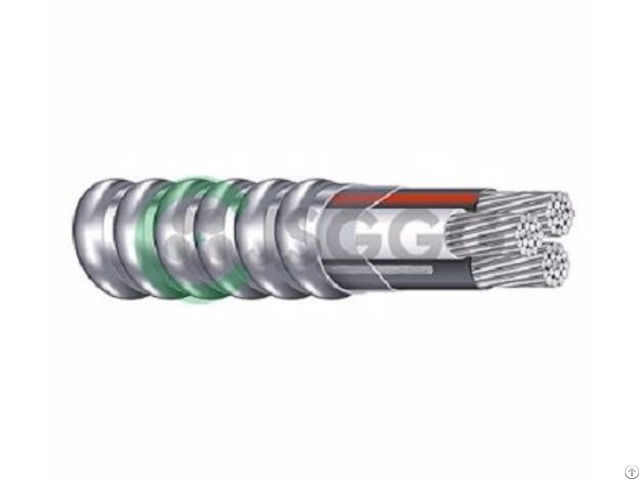

Sino-cables MC Type is constructed with Type XHHW-2 conductors rated 90℃ wet or dry, and a bare equipment grounding conductor.

The Conductors are AA-8000 series Aluminum Alloy compact stranded.

A binder tape is wrapped over the conductors with interlocked aluminum tape applied over the assembly.

Individual conductors are color coded per ICEA S-58-679, Method 3, Table 2 (Single color compounds with surface printing).

A PVC outer sheath is needed for direct burial.

Copper conductor is also available.

Standard

UL 44, UL 1569 for type MC; ICEA S – 95-658; NEMA WC70; Federal Spec A-A59544 (formerly J–C–30B); IEEEE 1202 70, 000 BTU vertical flame test; CSA Spec.

C22.2, No.

51 - Armoured Cables.

Features

1 - Up to 50% fewer installation steps; Pre-assembled and pre-tested; Lighter weight; Flexible, unlimited bends; Lower material and labor costs(Reduces installation costs up to 50% over pipe and wire); Ideal for vertical applications.

2 - Cable reverse wound on reel for ease of pulling and installation When pulling from coils, pull from inside to ensure of installation.

3 - Anti-short bushings are not required for use with MC cable per the NEC and UL.

Applications

1 - Sino-cables MC Type is suitable for use in branch, feeder and service power distribution under high ambient temperature in commercial, industrial, institutional, casinos and multi-residential buildings; for power, lighting, control and signal circuits; in concealed or exposed installations; Fished or embedded in plaster; in environmental air-handling spaces per NEC 300.22; in places of assembly per NEC 518.4 and theaters per NEC 520.5; in aerial applications when attached to a messenger; for installation in cable tray and approved raceways; under raised floors for IT equipment per NEC 645.5(D) and 645.5(D)(2); Class I Div 2, Class II Div 2, Class III Div 1 hazardous locations.

2 - used in wet or dry locations at temperatures not to exceed 90°C.

3 - Available with PVC jacket for direct burial and encasement in concrete.

Package

steel ＆ wooden reel, wooden reel, steel reel, in coils on wooden tray, or other requirements by customers.
