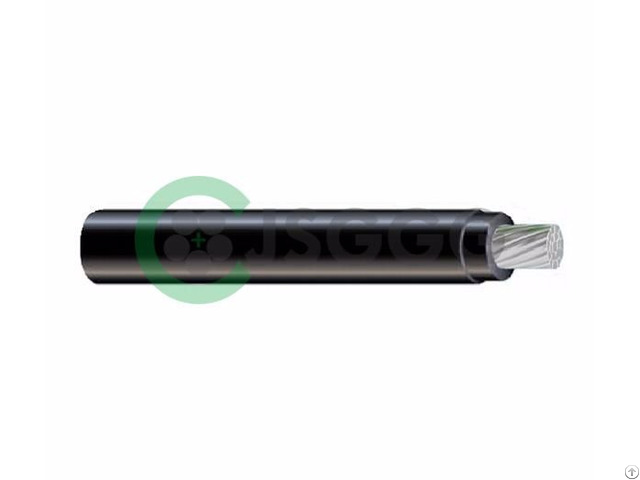

Aluminum Alloy Cable Xhhw 2 - China
price: contact company for price
Voltage
600V or less Construction
Sino-cables XHHW-2 type aluminum conductors are annealed AA-8000 series Aluminum Alloy, compact stranded.
Insulation is an abrasion, moisture and high-heat resistant black cross-linked polyethylene.
Conductor sizes AWG 2 and larger listed and marked sunlight resistant in black only.
Copper conductor is also available.
Standard
XHHW-2 conductors meet or exceed UL Standard 44 .
Federal Specification A-A-59544, and requirements of the NEC Type XHHW-2 meets and exceeds all construction requirements of ICEA S-95-658(NEMA WC 70)-Non shielded 0-2kv Cables, with testing frequencies based on UL requirements.
Features
1-40℃90℃
2 - High-Heat and Moisture and Sunlight Resistant.
3 - VW-1 or higher required by UL.
Applications
1 - XHHW-2 conductors are primarily used in conduit or recognized raceways for services, feeders, and branch circuit wiring as specified in the National Electric Code(NEC).
2 - May also be used in wet or dry locations at temperatures not to exceed 90℃.
3 - Voltage rating for RW90 cable is 600V.
Package
steel ＆ wooden reel, wooden reel, steel reel, in coils on wooden tray, or other requirements by customers.
Company Contact:
- Posted By: Jiangsu Sanqi Cable & Wire Co., Ltd,
- Phone: 0513-68971818
- Address: the west end of Yongtong Avenue, Rudong , Jiangsu , China
- Email:
Published date: June 21, 2017
- Business Description: Sino-Cable manufacture cables with AA 8000 series aluminum alloy cable, power cable, rubber cable, solar cable, xhhw-2, use-2, ser/seu, MC, MHF, UD Wire Cable.
