Aluminum Alloy Industrial Limit Switches High Mechanical Strength Housing - China

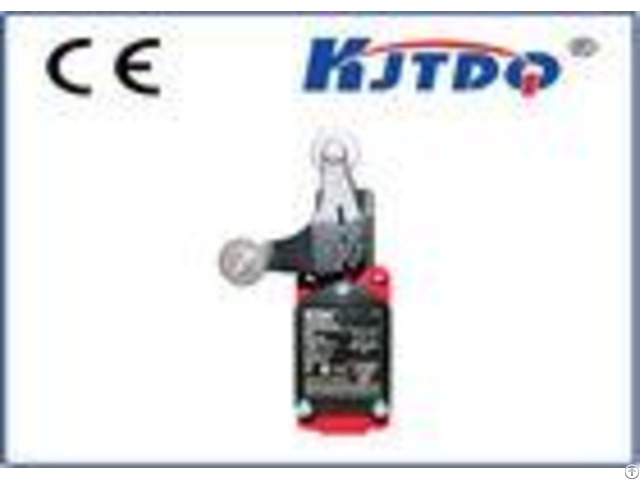

KJT-XW10K Series High Temperature Limit Switch Quick details: Name: High temperature limit switch Model: KJT-XW10K Operating temp: -25~350 Specification: - - - - Rated Voltage(V) | Noninductive Load (A) | Inductive Load (A) | | Resistance Load | Lamp Load | Inductive Load | Motor Load | | NC | NO | NC | NO | NC | NO | NC | NO | 125 V AC | 10 | 3 | 1.5 | 10 | 5 | 2 | 250 V AC | 5 | 2 | 1 | 5 | 3 | 1.0 | 480 V AC | 3 | 1.5 | 0.8 | 3 | 1.5 | 0.8 | 600 V AC | 1 | 1 | 0.5 | 1.5 | 1 | 0.5 | 8 V DC | 10 | 6 | 3 | 10 | 6 | 14 V DC | 10 | 6 | 3 | 10 | 6 | 30 V DC | 6 | 4 | 3 | 6 | 4 | 125 V DC | 0.8 | 0.2 | 0.2 | 0.8 | 0.2 | 205 V DC | 0.4 | 0.1 | 0.1 | 0.4 | 0.1 | - - - - - - - - Model No.

| KJT-XW10K | Name | High Temperature Limit Sensor | Rated current | 10 A 250 VAC | Operation speed | 1 mm--2 m/sec | Operating frequency | Mechanical: 120 operations/minute Electrical: 30 operations/minute | Contact resistance | 15 m max.

(initial value) | Insulation resistance | 100 m min.

(at 500VDC) | Dielectric strength | 1000VAC, 50/60HZ for 1 minute between terminals of the same polarity | 2200VAC, 50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts | 2200VAC, 50/60 HZ for 1 minute between each terminal and ground | Vibration | 10-55 HZ, 1.5 mm double amplitude | Shock | Mechanical durable: 1000m/Sec2(about 100G'S); Malfunction(Misoperation) : 300m/Sec2(about 30G'S) | Operating temperature | -60C ~ +350C | Operating humidity | Max.

95% RH | Life | Mechanical: 15, 000, 000 above Electrical: 500, 000 above | Protection degree | IP 67 | Weight | 258 g | Logo | Customized logo with Decal / Frosted / Print are available as request | Payment term | 30% deposit in advance, 70% before shipment, 100% T/T in advance | Certificate | CCC, CE, ISO9001 | Design ability | We can supply sample, OEM & ODM is welcome (Design, Engineering, Photographing, Sample, Production) | - - - - Application: High temperature limit switch is widely used in steel mills, and the temperature can up to 350 - Competitive Advantage: 1) Double circuit type of limit switch 2) Temperature up to 350 C, products are divided into high temperature 200 C and 350 C two specifications 3) IP67 grade protection, waterproof, oil proof and dust-proof structure 4) Housing material: aluminum alloy, high mechanical strength.

5) Ultra-level alarm, safe and reliable, contact detection, low worn 6) Easy to maintenance 7) Easy to use 8) Mechanical life is long FAQ: Q: What's your warranty ? How about the quality of your sensors ? A: 18 mouths .

We have the certification of ISO, CE, CCC.

Our sensors can replace many famous brand sensors(BALLUFF, IFM, P+F, TURCK, OMRON, SICK, Contrinex, Schneider, KEYENCE, BANNER, BAUMER, AUTONICS, etc) You can provide us the date sheet and we check whether can produce.

Q: Do you have different style ? A: We produce our own brand sensor(KJT), also provide OEM + ODM service.

Q: How can we become your sale distributor ? A: If you can sell our products USD 5, 000 to USD 60, 000 per year, you could be one of our distributors in your city or area.

We have price protection policy in every area.

We still looking for more distributors, do you like to join us? Q: Can we have our logo or company name to be printed on your products or the package ? A: Yes, you can.

Logo or imprints can be printed on our products.

The minimum quantity is 500 pcs per logo.

You can send us the artwork by email in JPEG or TIFF format.

If you want your logo and company name to be printed on the package for the products(custom design package).

Such as gift box and paper card, the MOQ is 500 pcs per model.

You can send us the artwork by email in JPG/TIF/AI/EPS/TIFF or coreIDraw formats Q: How about the delivery time ? A: We are factory and we have large warehouse for goods, if we have the sensors you need in stock, we will send in 3 days.

If have not in stock, we will produce asap after received your payment in our account.

the detailed delivery time is according your order qty.

Q: Does KJT keeps goods in stock or only trading ? A: We have large warehouse for goods.

Keep lots of goods in warehouse, so could promise fast delivery.

Q: What's your shipment method? A: We ship by Express, by air, by sea, by train.

Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ? A: First order MOQ=5 pcs (different type sensor has different MOQ) Q: How can i get a sample ? A: If you need one sample for checking-up, we will provide one free sample for one type sensor(same data sheet) for you, .

but we do not carry the freight charge.

If we have no this type sample in stock, we could produce it for you.
