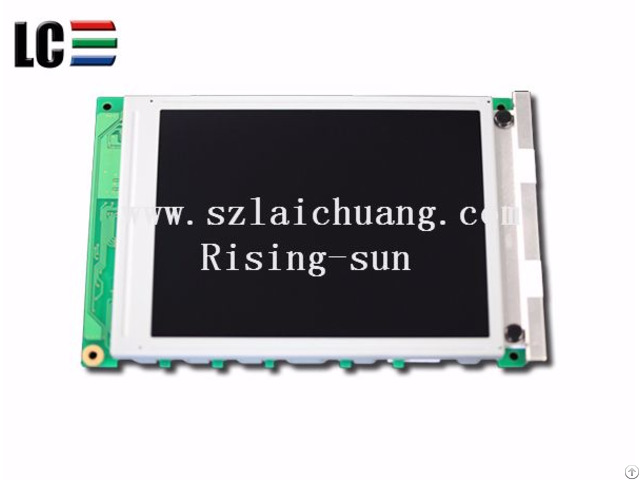

Ampire Stn Lcd Module 320 240 6 200nit Ag320240a4stcw02h - China

Productor AMPIRE

MODEL AG320240A4STCW02H

Size 6.0"

Resolution 320*240

Resolution Name QVGA

Display scale 4: 3

Pixel Pitch 0.360*0.360 mm

Panel Composition lcd

Technology STN-LCD

Luminance 200 nits

Contrast Ratio 7: 1

Color Saturation -1%

Response 200/200 (Tr/Td) ms

Viewing Angle 40/35/35/35

The Best View 6 o'clock

Scanning Frequency 70Hz

Reverse Scan No

The kind of Singnal Parallel

Interface Parallel

Singnal Interface Definition BLL-4PINS-HNNL

Drive-screen voltage 5.0V

Input Current 5mA (IDD)

Brand of Singnal Interface JAE

Pitch of Singnal Interface 1 mm

Pin of Singnal Interface 4 pins

Operation Temperature 0 °C ~ 50 °C

Storage Temperature -20°C ~ 70°C

Active Area 122.0*92.0 mm

Display Area 122.0*92.0

Outline 178.80* 115.70*12.50 mm

Touch Panel NO
