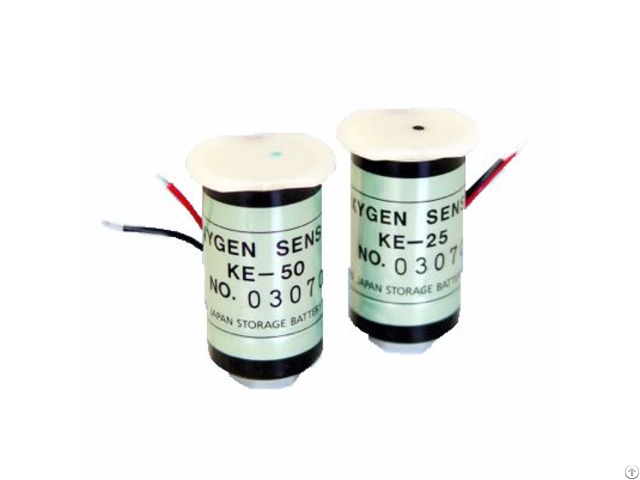

Anesthetic Instruments Medical Oxygen Sensor Ke 25 50 - China

Anesthetic Instruments Medical Oxygen sensor KE-25 KE-50 The GS Oxygen Sensor KE series (KE-25 and KE-50) is a unique galvanic cell type oxygen sensor which was developed in Japan in 1985 - Its most notable features are long life expectency, excellent chemical durability, and it is not influenced by CO 2 .

The KE series oxygen sensor is ideal to meet the ever-increasing demand for oxygen monitoring in various fields such as combustion gas monitoring, the biochemical field, medical applications, domestic combustion appliances, etc.

Features:

* Long life KE-25 - 5 years / KE-50 - 10 years in ambient air

* Virtually no influence from CO2, CO, H2S, NOx, H2

* Low cost

* Operates in normal ambient temperatures

* Stable output signal

* No external power supply required for sensor operation

* No warmup time is required Applications:

* Medical - Anesthetic instruments, respirators, oxygen-enrichers

* Biotechnology - Oxygen incubators

* Food industry - Refrigeration, greenhouses

* Safety - Air conditioners, oxygen detectors, fire detectors Specifications

Measurement range: 0 ~ 100% O2 Accuracy: KE-25: ±1%(full scale); KE-50: ±2%(full scale)

operating conditions: Atmospheric pressure: 811 hPa ~ 1216 hPa Temperatire: 5 ~ 40'C Relative humidity: 10 ~ 90%R.H.(no cindensation)

Response time(90%): KE-25: 14±2 seconds ; KE-50: 60±5 seconds

Initial ouput voltage under standard test conditions: KE-25: 10.0 ~ 15.5mV ; KE-50: 47 ~ 65mV

Atandard test conditions: Test gas: 21% O2 Atmospherture: 1013±5hPa Temperature: 25'C±1'C Relative humidity: 60±5%

Linearity( (Va-V0)/(V100-V0) ): 0.21±0.02

Offset voltage (V0): KE-25: ≤0.5mV ; KE-50: ≤6.0mV

Temperature(VH/Va): 0.91 ~ 1.09

characteristics(VL/Va) : 0.91 ~ 1.09
