Api Flange Stainless Steel Globe Valve - China

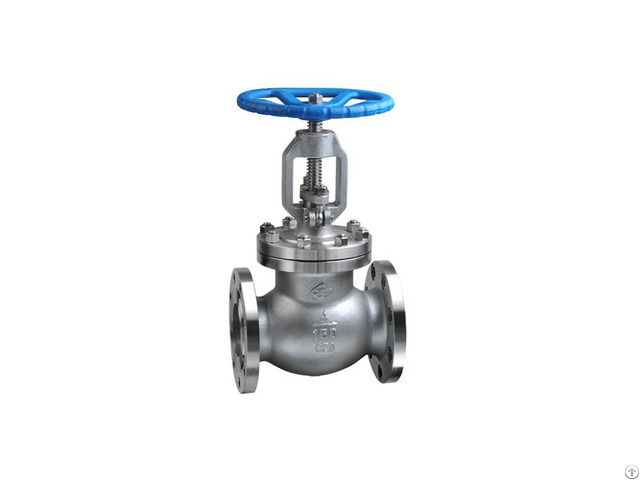

API Flange Stainless Steel Globe Valve

Stainless Steel Thread Globe Valve

Features:

Size Range: 1/2" up to 48"

Pressure Range: ANSI 150LB to 2500LB

End Connection: BW, RF, RTJ

Operate: Handwheel, Actuator

Material: Stainless Steel, Duplex Stainless Steel

Seals: Metal to Metal Introduction to Globe Control Valve

The globe control valve is a compulsory sealed valve, so when the valve is closed, pressure must be applied to the disc to force the sealing surface to not leak.

When the medium enters the valve 6 from below the valve disc, the resistance to be overcome by the operating force is the frictional force of the valve stem and the packing and the thrust generated by the pressure of the medium.

The force to close the valve is greater than the force to open the valve.

The diameter of the stem must be large, otherwise, the failure of the valve top bend will occur.

In recent years, since the emergence of self-sealing valves, the medium flow direction of the globe control valve has changed from above the valve disc into the valve cavity.

At this time, under the action of the medium pressure, the force to close the valve is small, and the force to open the valve is large.

The diameter of the rod can be reduced accordingly.

At the same time, this type of valve is also tight under the action of the medium.

China's valve has stipulated that the flow direction of the globe control valve will be used from top to bottom.

When the globe control valve is opened, when the opening height of the valve disc is 25% to 30% of the nominal diameter, the flow has reached the maximum, indicating that the valve has reached the fully open position.

Therefore, the fully open position of the shut-off valve should be determined by the stroke of the valve disc.

This type of valve should generally be installed horizontally in the pipeline.

Standards:

Valves Design: API6D, API608

Face to Face: ANSI B16.10

End Connection: ANSI B16.5, ANSI B16.25

Testing&Inspection : API6D, API598

Suitable Medium: Water, Oil, Air And Some Corrosive liquid Globe control valve advantages:

1 - Simple structure, easy to manufacture and maintain.

2 - Small working stroke and short opening and closing time.

3 - Good sealing performance, small friction between sealing surfaces and long life.

Disadvantages of globe control valve:

1 - The fluid resistance is large, and the force required when opening and closing is large.

2 - Not suitable for media with particles, large viscosity and easy to coke.

3 - Poor regulation performance.

The type of flange globe control valve is divided into external thread type and internal thread type according to the position of the stem thread.

According to the flow direction of the medium, there are straight-through, direct-current and angular.

The shut-off valve is divided into sealing forms, and it has a packing-sealed shut-off valve and a bellows-sealed shut-off valve.

Structure of the globe control valve:

The structure of the XINTAI globe control valve body has straight-through, DC and right-angle.

Straight-through is the most common structure, but its fluid resistance is greatest.

DC fluid has low resistance and is mostly used for fluids with solid particles or high viscosity.

Right-angle valve bodies are mostly forged, which is suitable for flange globe valves with the smaller passage and higher pressure.

A globe valve, different from the ball valve, is a type of valve used for regulating flow in a pipeline, consisting of a movable disk-type element and a stationary ring seat in a generally spherical body.

Application scope: petroleum chemical industry, electric power, metallurgy, medicine, real estate, municipal engineering, and other industries.
