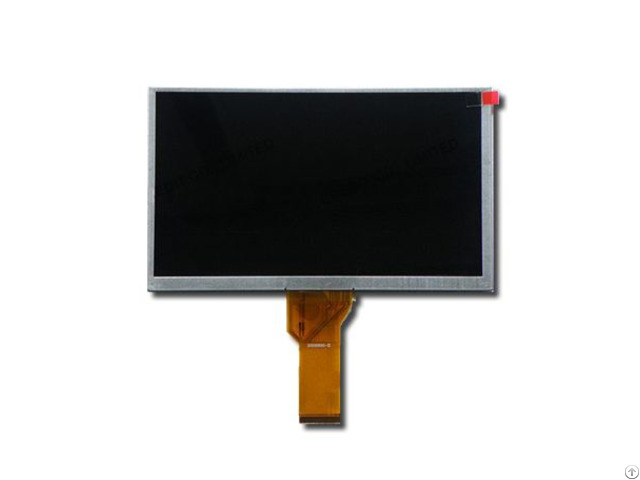

At070tn94 Innolux 7 Inchtft Lcd Panel - China

Productor Innolux

Model AT070TN94

Size 7.0"

Resolution 800*480

Resolution Name WVGA

Display scale 16: 9

Pixel Arrangement RGB

Pixel Pitch 0.0642*0.1790 mm

Panel Composition LCD

Technology a-Si TFT-LCD

Display mode TN, nw, Transmissive

Luminance 400 nits

Contrast Ratio 500: 1

Color 262K/16.7M

Color Saturation 50%NTSC(CIE1931)

(Response 10/15 (Tr/Td) ms

Viewing Angle 50/70/70/70

The Best View 6 o'clock

White Field Chroma X: 0.310; Y: 0.330

(White Field Dynamic 1.33 (9 points)

Scanning Frequency 60Hz

The kind of Singnal Parallel

Interface Parallel

Singnal Interface Definition DRGB-50P1C8B-115A

Drive-screen voltage 3.3/10.4/16.0/-7.0V (VCC/AVDD/AVDD/VGL)

Input Current 4/2/0.2/0.2mA (ICC/IAVDD/IGH/IGL)

Brand of Singnal Interface FPC

Pitch of Singnal Interface 0.5 mm

Quantity of Singnal Interface 1 pcs

Pin of Singnal Interface 50 pins

Operation Temperature -20 °C ~ 70 °C

Storage Temperature -30°C ~ 80°C

Active Area 154.08*85.92 mm

Display Area 156.7*89.1

Outline 164.90* 100.00*5.70 mm

Touch Panel NO
