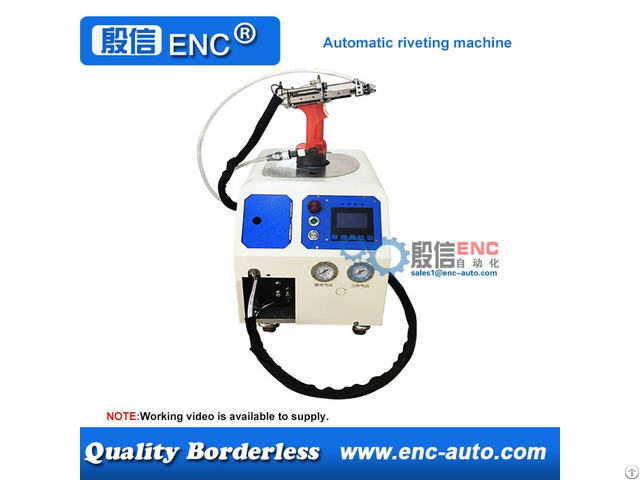

Automatic Handheld Portable Riveting Machine - China

Features:

1) Can meet all kinds of rivets, such as aluminum, copper, iron, stainless steel, etc.

2) Humanized design, to make the workers more comfortable in the process of operating the machine.

3) Patent design, Feed fast, stably, rare stuck.

4) Can be grafted together with other automatic equipment, better meet the demand of some special riveting.

5) Can use the screen to set up the machine parameters, Intuitive menu, through the navigation and function keys to guide you operating the machine.

6) The total weight of handheld portable riveting gun is less than 1.2kg, Which is easy to operate for worker.

What`s more, The bottom of this kind automatic handheld portable riveting machine has been installed with several sets of universal casters, Which is convenient to move machine to any place.

7) Mandrel can be recycled by the vacuum system.

8) Huge store bin, For different size rivet, It can held rivet 1800~5500 pcs.

9) Can meet the Max.

length 25mm, If the length of rivet is more than 25mm, We can supply you the customed model.

10) Universal power supply: AC110~240V, 50/60Hz.

Model and specifications:

Model: ENC-N6000

Rivet diameter(Max.

): Stainless steel 5mm;Aluminum 6.4mm;Iron 6mm;Copper 5mm

Rivet head diameter(Max.

): 7mm

Rivet mandril length(Max.

): 27mm

Pull force: 4850N

Air consumption: 70L/Min.

Efficiency: 1.5S/Pcs.

Air pressure: 5.5±0.5kg/cm²

Power source: 90~240 ACV, 50~60Hz

Riveting gun weight: 1.2kg

Feeding pattern: Vibration bowl

Overall dimension(L*W*H): 585*416*470mm

Weight: 75kg
