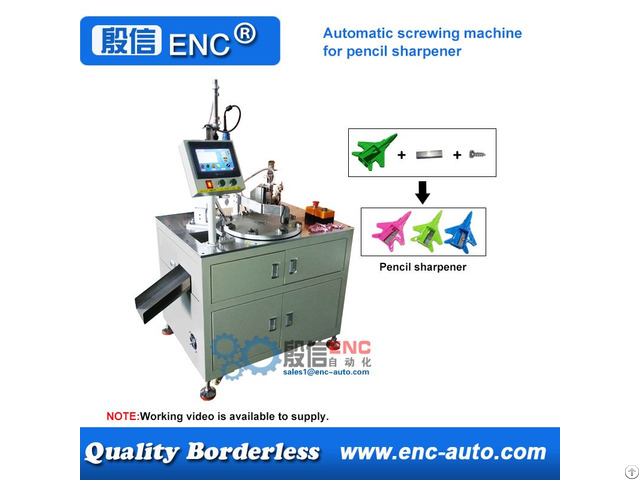

Automatic Screw Tightening Fastening Machine For Pencil Sharpener - China

Features:

1) This set automatic screwing tightening fastening machine for pencil sharpener adopts the design of eight stations, It can realize pencil sharpener body feeding, blade feeding, screw feeding, screw fastening and finished pencil sharpener blanking at the same time, The efficiency is improved much greatly.

2) Be equipped with the function of slipping, missing and floating.

3) Adopts the alarm system of tricolor light and buzzer, Once the abnormal condition happens, It will alarm right now.

4) Be equipped with LED touch screen which can display the alarm, So it can help the operator to find and solve the problem in a short time.

5) The intelligent operation system make sure the machine in good and stable performance.

At the same time, This machine also own some additional function, Such as the quantity statistics (OK quantity & NG quantity) etc.

6) Adopt the ASA brand screwdriver especial for automation application as the driver.

7) Universal power：AC110~240V, 50/60Hz.

Model and specification:

Model: ENC-SA840

Working power: AC110~240V, 50~60Hz

Torsion Max: 2 kgf.

cm

Driver type: ASA Electric screw driver(For automation application only)

Working pressure: 5.5(±0.5)kg/cm²

Machine control mode: PLC

Screw feeding pattern: Screw feeder (Rocker arm)

Working temperature: 0~40℃

Working humidity: 20~90%without condensation

Sample transplanting type: Rotation table

Applicable screw: ST2.3*4.7mm

Dimension: 1000*800*1500mm

Net weight: 240kg
