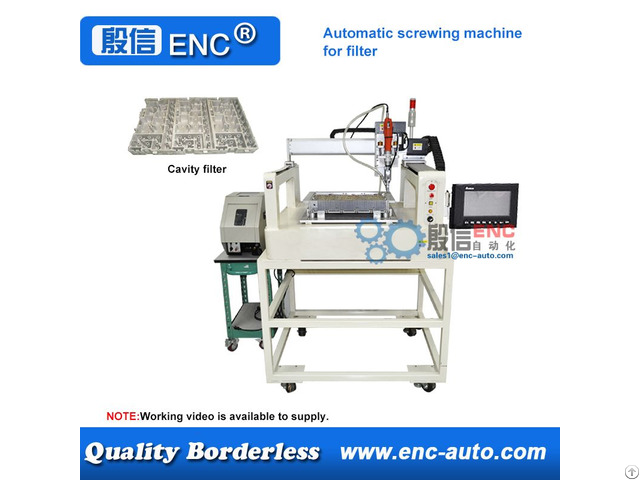

Automatic Screwing Tightening Fastening Machine For Cavity Filter - China

Features:

1)This set Automatic screwing tightening fastening machine for cavity filter adopts the custom X-Y table model, Because the filter belongs to the precise instrument, So we use the servo motor as the driver in X and X axis direction, Positioning accurately, The success rate of screw assembling can reach 99.99% at least.

2)Huge screw feeder can hold 2000~2500 pcs of screws one times.

So you should never need to worry the matter of lacking screws during production any more.

3)Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

4)The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

5)Adopt the ASA brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

Universal power supply: 110-240ACV, 50~60Hz.

Model and specification:

Model ENC-500DU

Production efficiency 1 pcs/Min.

Universality various types (Just require replacing fixture and shifting program)

Power supply 110~240ACV, 50~60Hz

Dimension 1000x960x1700 mm

Weight 180 kg

Screw driver type Mitsubishi servo motor

Capacity of vibration bowl 2000~2500 Pcs

Torque 12 kgf/cm²

Automation level Semi-automatic type
