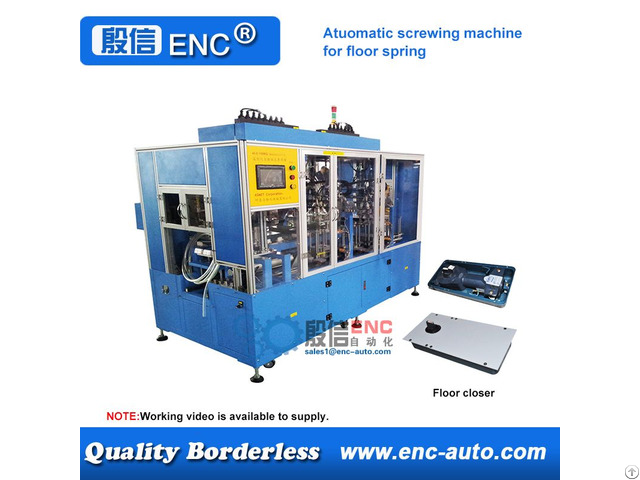

Automatic Screwing Tightening Fastening Machine For Floor Spring Closer - China

Features:

1) Adopt the design of production line multi-stations structure, Multiple working processes run at the same time, The production efficiency can be improved for several times.

2) This set automatic screwing tightening fastening machine can meet various specification floor spring closer by shifting program and replacing fixture.

3) Huge screw feeder can hold 2000~2500 pcs of screws one times.

So you should never need to worry the matter of lacking screws during production any more.

4) Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

5) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

6) Adopt the ASA brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

7) Universal power supply: 110-240ACV, 50~60Hz.

Model and specification:

Production efficiency 2~3 pcs/Min.

Universality Various types (Just require replacing the fixtures and setting the program)

Power supply 110~240ACV, 50~60Hz

Dimension 2000x1200x1850 mm

Weight 960 kg

Screw driver type ASA electric screwdriver (For automation application only)

Capacity of vibration bowl 2000~2500 Pcs

Torque 25 kgf/cm²

Automation level Semi-automatic type
