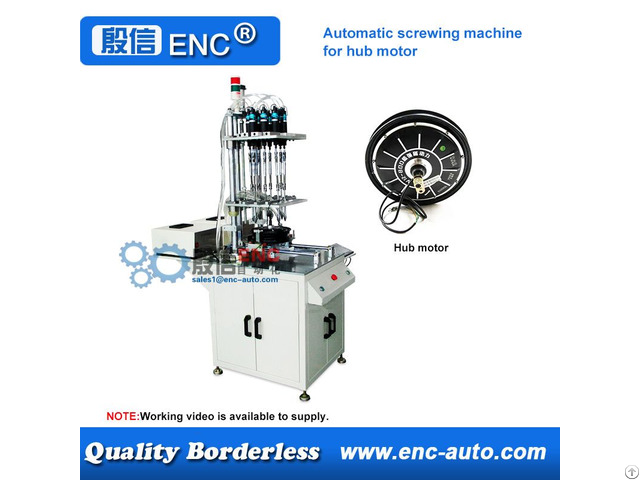

Automatic Screwing Tightening Fastening Machine For Hub Motor - China

Features: 1)Considering the large volume and heavy weight of hub motor, This machine adopts single slipping station structure, Place one set of semi-finished hub motor into the fixture per time.

2)This set automatic screwing tightening fastening machine for hub motor adopts eight spindles screwing system, It can assemble 8 screws per time, So the productivity can be improved for more than 8 times.

3)Huge screw feeder can hold 2000~2500 pcs of screws one times.

So you should never need to worry the matter of lacking screws during production any more.

4)Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

5) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

6) Adopt the M&L brand pneumatic screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

7) Universal power supply: 110-240ACV, 50~60Hz.

Model and specification:

Model ENC-500DUSE

Production efficiency 10~12 pcs/Min.

Universality various types (Just need to replace the fixture and adjust the space among screwing spindles)

Power supply 110~240ACV, 50~60Hz

Dimension 700x1030x1800 mm

Weight 290 kg

Screw driver type ASA electric screwdriver (For automation application only)

Capacity of vibration bowl 2000~2500 Pcs

Torque 25 kgf/cm²

Automation level Semi-automatic type
