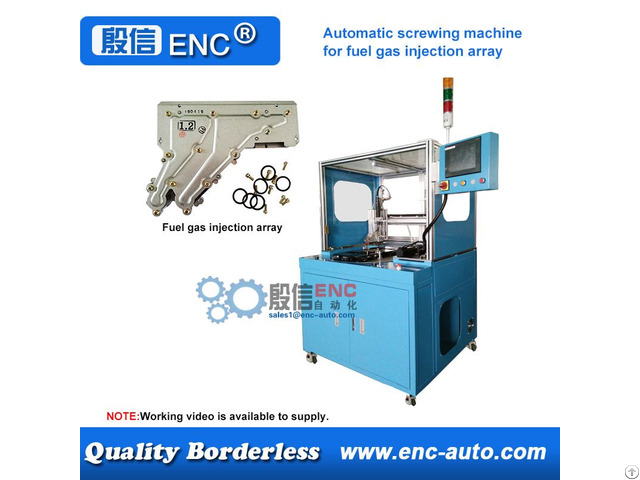

Automatic Screwing Tightening Fastening Machine For Natural Gas Manifold Assembly - China

Features:

1)It adopts the design of double stations rotation table structure, The machine will start to fastening screw after one station enters the screw-driving working area.

At the same time, The another station return the waiting area, The operator takes out the finished natural gas manifold assembly firstly, Then puts in the semi-finished natural gas manifold assembly, Which can ensure the screw assembling, finished product blanking and semi-finished product loading goes on synchronously.

2)This set Automatic screwing tightening fastening machine for natural gas manifold assembly is equipped with high precise servo motor in the X and Y direction, Precise position, It can meet the requirement of screw assembling well.

3)Huge screw feeder can hold 2000~2500 pcs of screws one times.

So you should never need to worry the matter of lacking screws during production any more.

4)Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

5) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

6) Adopt the ASA brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

7) Universal power supply: 110-240ACV, 50~60Hz.

Model and specification:

Production efficiency 2~3 pcs/Min.

Universality 4 kinds (Just require replacing fixture and shifting program)

Power supply 110~240ACV, 50~60Hz

Dimension 1200x1130x1830 mm

Weight 287 kg

Screw driver type ASA electric screwdriver (For automation application only)

Capacity of vibration bowl 2000~2500 Pcs

Torque 25 kgf/cm²

Automation level Semi-automatic type
