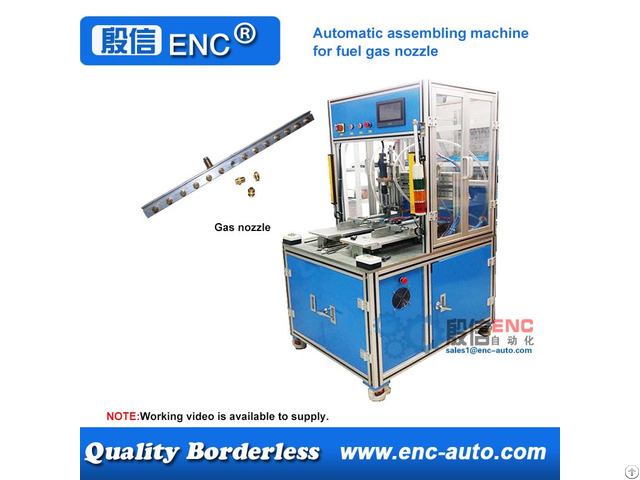

Automatic Screwing Tightening Fastening Machine For Natural Gas Nozzle - China

Features:

1)It adopts the design of double stations double slipping tables structure, The machine will start to fasten the natural gas nozzle after one station enters the working area.

At the same time, The another station return the waiting area, The operator takes out the finished natural gas nozzle firstly, Then puts in the semi-finished natural gas nozzle, Which can ensure the natural gas nozzle fastening, finished product blanking and semi-finished product loading goes on synchronously.

2)This set Automatic screwing tightening fastening machine for natural gas nozzle is equipped with high precise servo motor in the Y direction, Precise position, Improve the efficiency of natural gas nozzle tightening greatly.

3)Huge hopper can hold 2000~2500 pcs of natural gas nozzle one times.

So you should never need to worry the matter of lacking natural gas nozzle during production any more.

4)Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

5) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

6) Adopt the ASA brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

7) Universal power supply: 110-240ACV, 50~60Hz.

Model and specification:

Model ENC-SS450D

Production efficiency 2~3 pcs/Min.

Universality Six types (Just require replacing fixture and shifting program) Power supply 110~240ACV, 50~60Hz

Dimension 900x1130x1830 mm

Weight 220 kg

Screw driver type ASA electric screwdriver (For automation application only)

Capacity of vibration bowl 2000~2500 Pcs

Torque 25 kgf/cm²

Automation level Semi-automatic type
