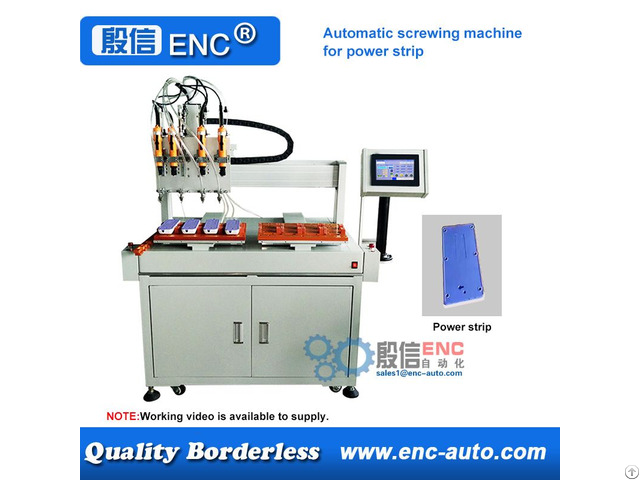

Automatic Screwing Tightening Fastening Machine For Power Strip - China

Features:

1)Adopt the design of double slipping station, The left and right station can work in turn without interference.

2)The four spindles fastening system can assemble 4 pcs screw one times, Compared with the single spindle fastening system, The production efficiency has been increased for more than 4 times.

3)This set automatic screw tightening fastening machine just require replacing the fixtures and switching the program.

then it can meet various types of power strip.

4)Huge screw feeder can hold 2000~2500 pcs of screws one times.

So you should never need to worry the matter of lacking screws during production any more.

5)Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.

6) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.

7) Adopt the KILEWS brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.

8) Universal power supply: 110-240ACV, 50~60Hz.

Model and specification：

Production efficiency 20~24 pcs/Min.

Universality Various types (Just require replacing the fixtures and adjusting the distance between two screw tightening spindles)

Power supply 110~240ACV, 50~60Hz

Dimension 1200x700x1500 mm

Weight 210 kg

Screw driver type KILEWS electric screwdriver (For automation application only)

Capacity of vibration bowl 2000~2500 Pcs

Torque 10 kgf/cm²

Automation level: Semi-automatic type
