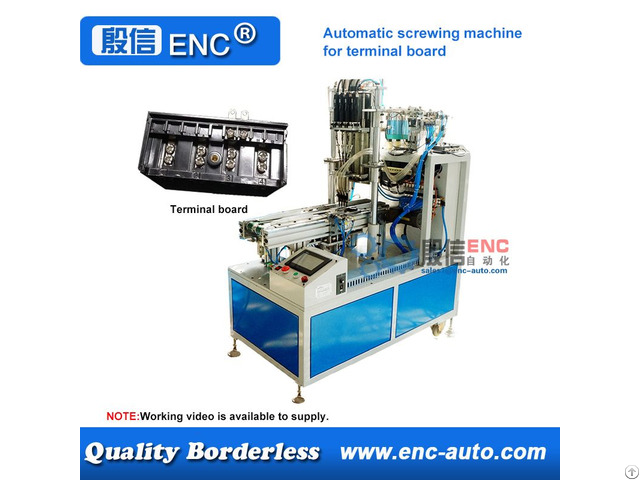

Automatic Screwing Tightening Fastening Machine For Terminal Board Strip - China
price: 1.00 Dollar US$
Features:
1) Equipped with a conveyor belt, Which can be used as a transplanting mechanism for semi-finished terminal board, And also can be used as blanking device for finished terminal strip.
2) This set automatic screwing machine for terminal board strip adopts the design of four screwing spindles structure, It can assemble four screws per time, The productivity can be improved 4 times at least.
3) Huge screw feeder can hold 2000~2500 pcs of screws one times.
So you should never need to worry the matter of lacking screws during production any more.
4) Equipped with the LED touch screen which can display the alarm in real time, So it is very convenient for operator to find and solve the problem in a short time.
5) The machine owns the function as the following: Quantity statistics(OK amount and NG amount), thread slip detection, floating detection, screw omission detection etc.
6) Adopt the ASA brand electric screwdriver especial for automation as the driver, Torsion outputs stably, Which can ensure a perfect assembling quality.
7) Universal power supply: 110-240ACV, 50~60Hz.
Model and specification:
Model: ENC-SL900F
Production efficiency 2~3 pcs/Min.
Universality One type
Power supply 110~240ACV, 50~60Hz
Dimension 1240x795x1700 mm
Weight 450 kg
Screw driver type ASA electric screwdriver (For automation application only)
Capacity of vibration bowl 2000~2500 Pcs
Torque 12 kgf/cm²
Automation level Semi-automatic type
Company Contact:
- Posted By: ENC automatic machine (Shanghai) Co.,Ltd.
- Phone: 18301786646
- Address: Room 1233,Building 2st,No.380,Huihuang road,Jinhui town,Fengxian district, Shanghai , Shanghai , China
- Email:
- Website: http://www.enc-auto.com/en/
Published date: November 18, 2022
- Business Description: ENC Automatic Machine (Shanghai) Co., Ltd. is founded in 2013, Which is committed to the design and manufacture of automatic screwing machine.
Our product contains of basic handheld screwing machine, single spindle screwing machine, X-Y table screwing machine and complex multi-spindles screwing machine, multi-stations screwing machine, automatic production line.
Integrated with conveyor, rotation table and robot arm, our company had designed and manufactured many sets automation equipment and make it is possible maximize the efficiency of automation equipment, save more labor cost, enhance productivity.
Make the screwing is never the bottleneck of industry.
In recent years, ENC-Auto inputs more and more money and vigor into the research and development of automation equipment, to supply more economic and more accurate equipment to user.
Up to now, Our equipment had been sold to European and American markets, Asia market and Australian market.
We are the long-term supplier of many domestic and international famous brand company.
